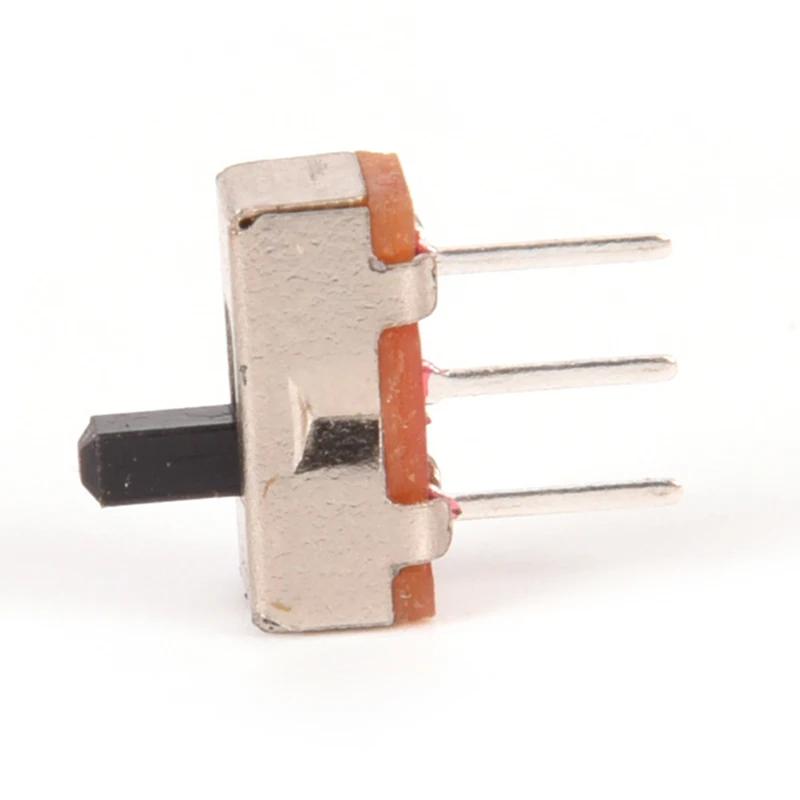

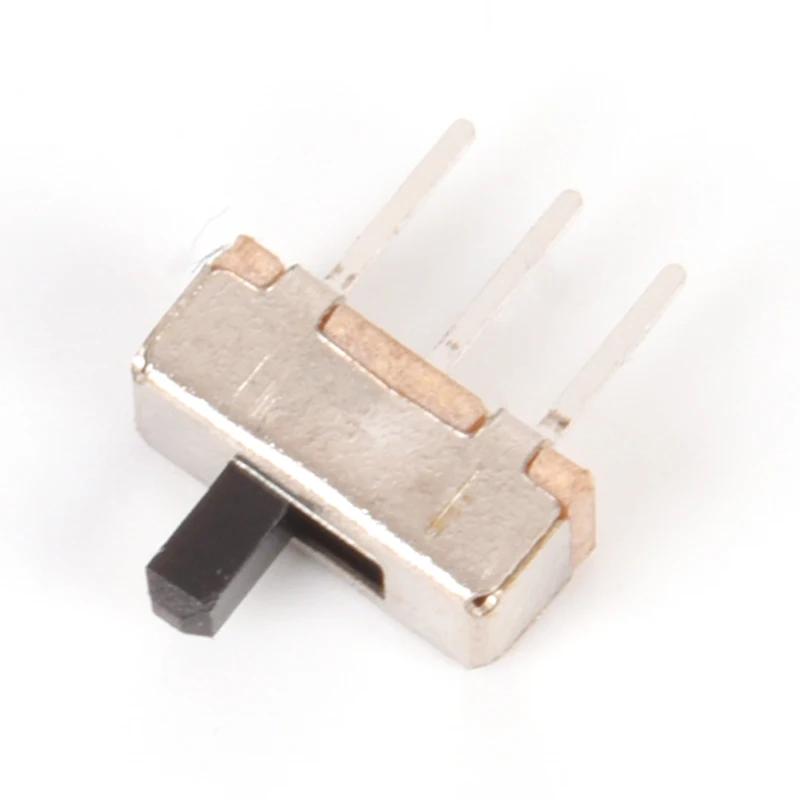

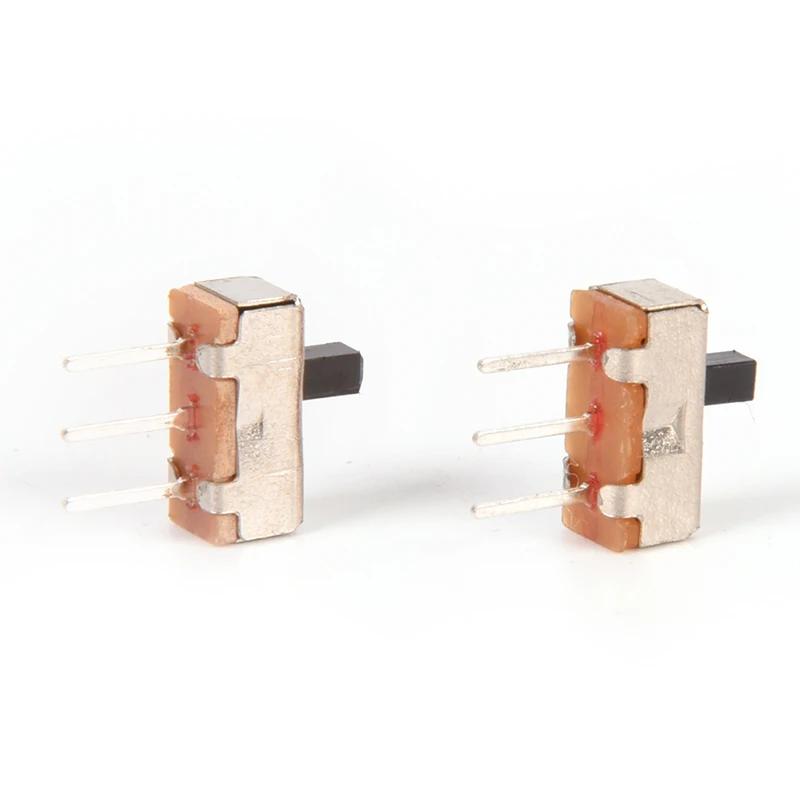

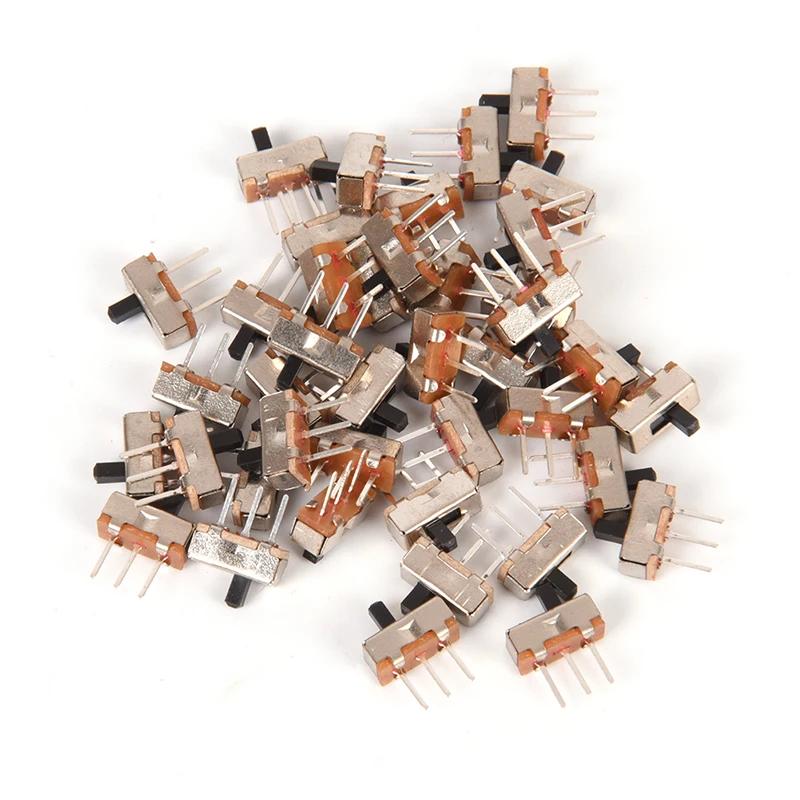

1PC SS-12D00G3 Slide Switch 2 Position SPDT 1P2T 3Pin PCB Panel Mini Vertical Toggle Switches for DIY Electronic Accessories

Model:   SS-12D00G3

    Type:   1 Pole 2 Throw

    Terminal Quantity:  3 Pin

    Working Power:    0.5A 50V DC

    Contact Resistance:   30mΩ Max

    Insulation Resistance:   100mΩ Min at 500V DC

    Withstand Voltage]:   AC 500V for 1 min

    Terminal Length:   3mm/ 0.12″

    Pin Pitch:   2.54mm / 1″

    Main Body Size (not include Pins & Knob):  8 x 4 x 3.8mm/ 0.31″ x 0.16″ x 0.15″(L*W*H)

    Switch Total Size:   8 x 4 x 10mm/ 0.31″ x 0.16″ x 0.39″(L*W*H)

    Knob Size:   1.5 x 1.5 x 3mm/ 0.06″ x 0.06″ x 0.12″(L*W*H)

    Material (External):    Plastic, Metal

    Main Color:  Silver Tone, Black
