Description

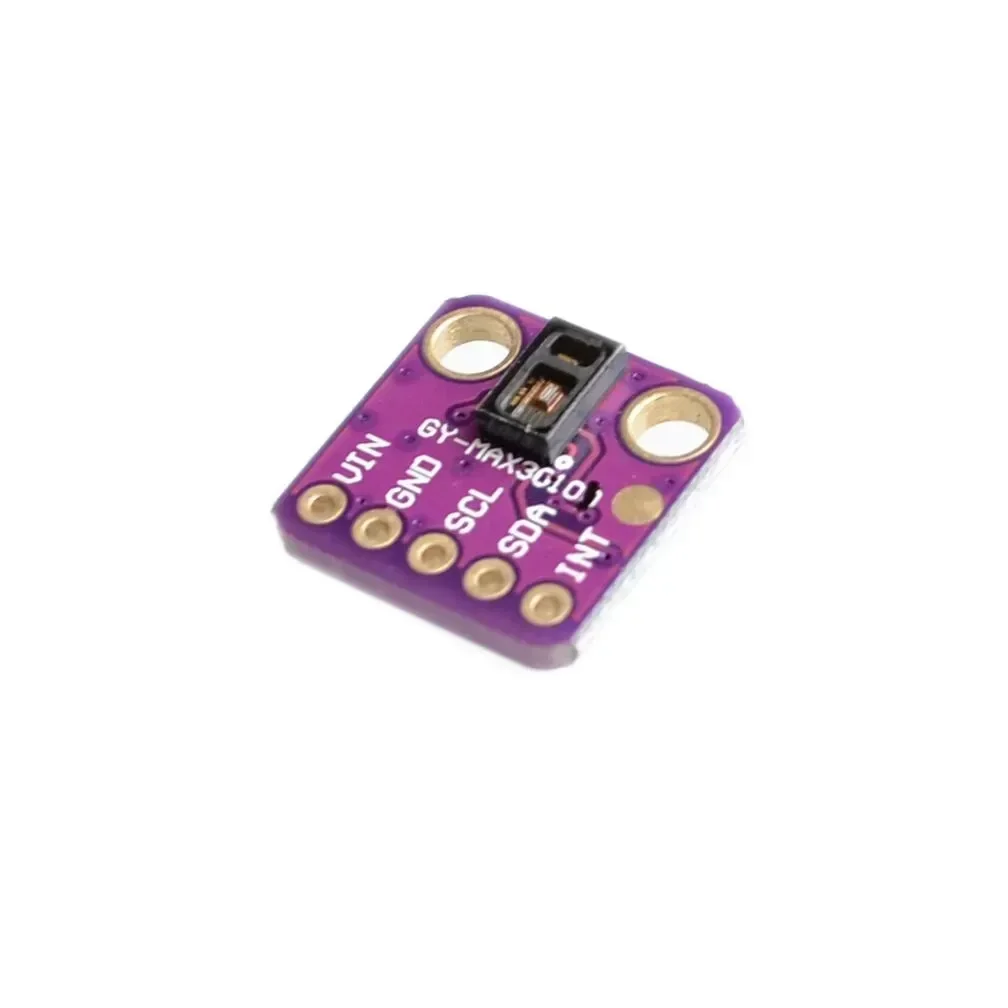

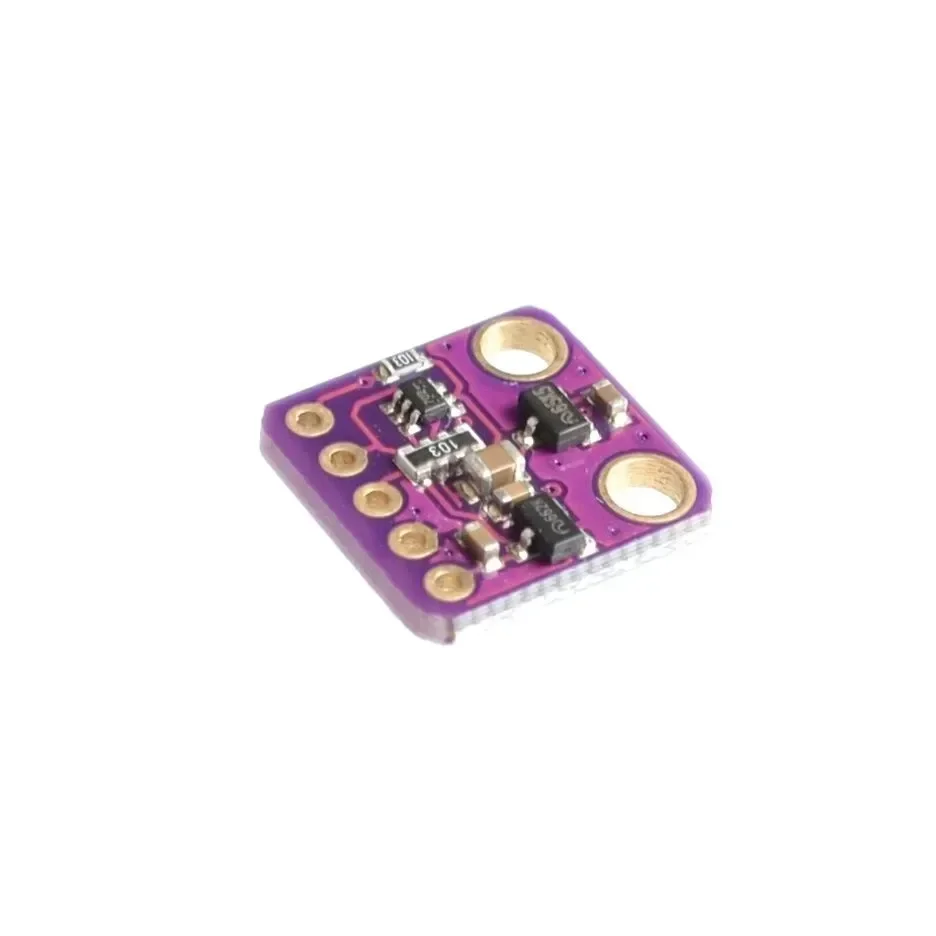

The MAX30102 Sensor Module Breakout is a highly integrated optical sensor solution designed for heart rate monitoring and pulse oximetry (SpO2) measurement. Featuring ultra-low power consumption and a compact 12.7mm × 12.7mm board size, this module is ideal for wearable devices, medical monitoring projects, and Arduino-based health systems.
This sensor combines LEDs, photodetectors, optimized optics, and low-noise analog signal processing to deliver reliable non-invasive heart-rate and oxygen saturation measurements. Unlike chest-strap monitors, the MAX30102 allows for comfortable finger-based or wearable detection, making it suitable for smart health devices and fitness trackers.
The MAX30102 Sensor Module Breakout includes device drivers, free algorithm support, and example C source code for both Arduino and mbed platforms. With its I2C communication interface, integration into microcontroller projects such as Arduino, ESP32, STM32, or Raspberry Pi is straightforward.
Designed for ultra-low power applications, the MAX30102 is perfect for battery-operated devices, wearables, and portable medical monitoring systems.
Key Features
-
Highly integrated optical heart-rate and SpO2 sensor
-
Ultra-low power consumption
-
Compact 12.7mm × 12.7mm board size
-
Non-chest-based heart-rate detection
-
Free algorithm and example source code provided
-
Device drivers included
-
I2C communication interface
-
Optimized for wearable and portable applications
Technical Highlights
-
Model: MAX30102
-
Function: Heart-rate monitor & pulse oximeter (SpO2)
-
Communication: I2C digital interface
-
Board Size: 12.7mm × 12.7mm
-
Power Consumption: Ultra-low
-
Integration: LEDs + photodetector + analog front-end
Applications
-
Wearable health monitoring devices
-
Heart-rate monitoring systems
-
Pulse oximetry (SpO2) measurement
-
Fitness trackers
-
IoT health monitoring projects
-
Biomedical research and prototypes
Package Includes
-

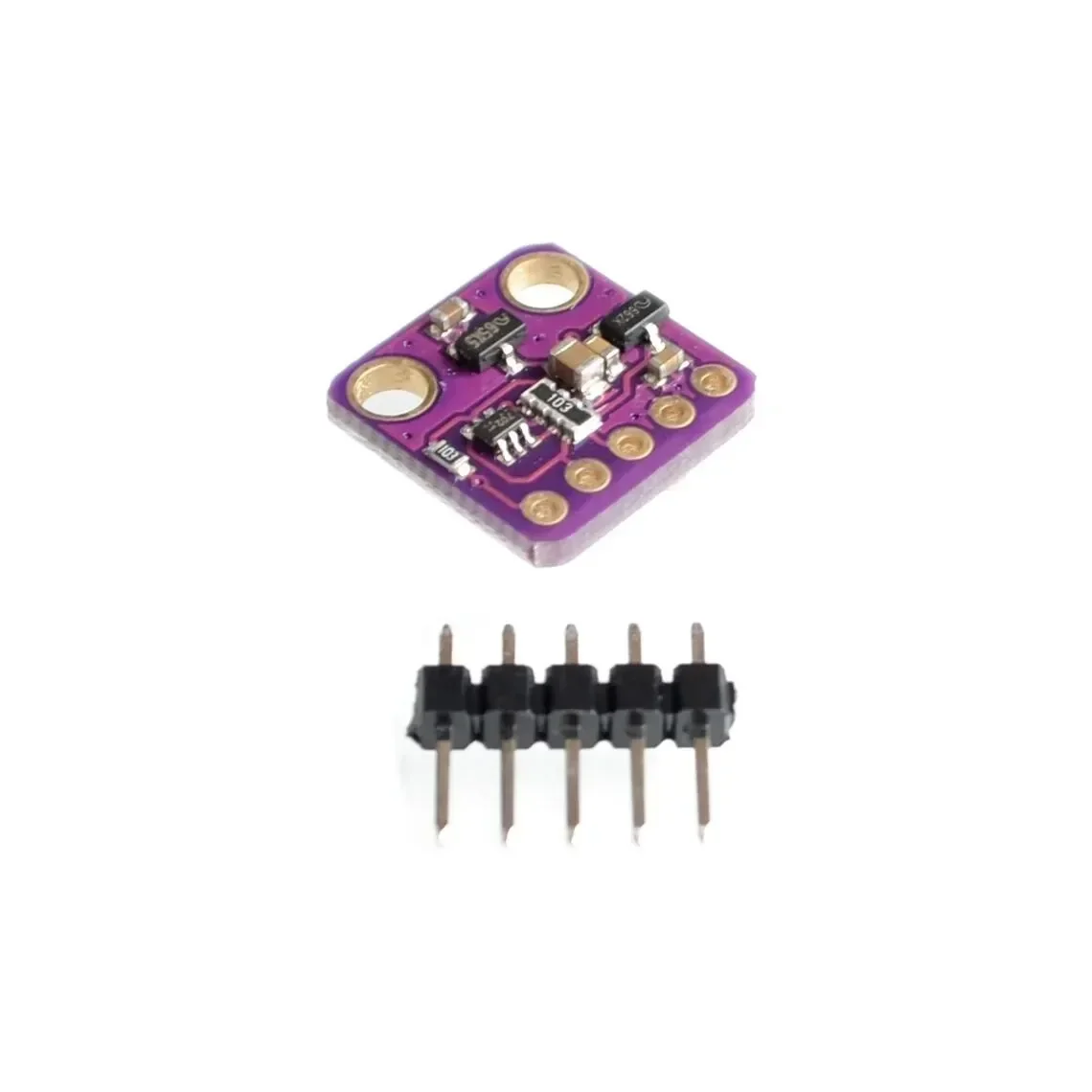

1 × MAX30102 Sensor Module Breakout
