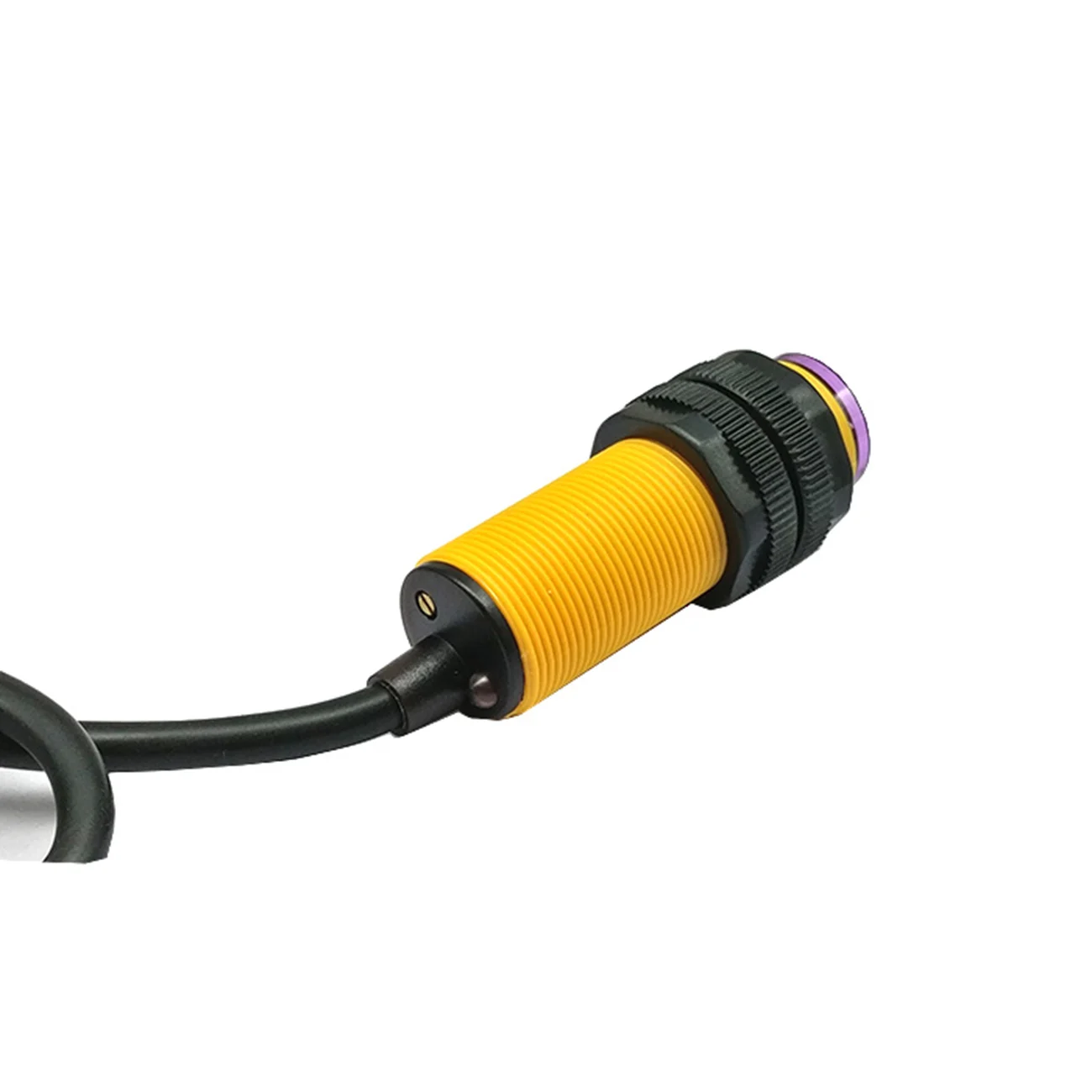

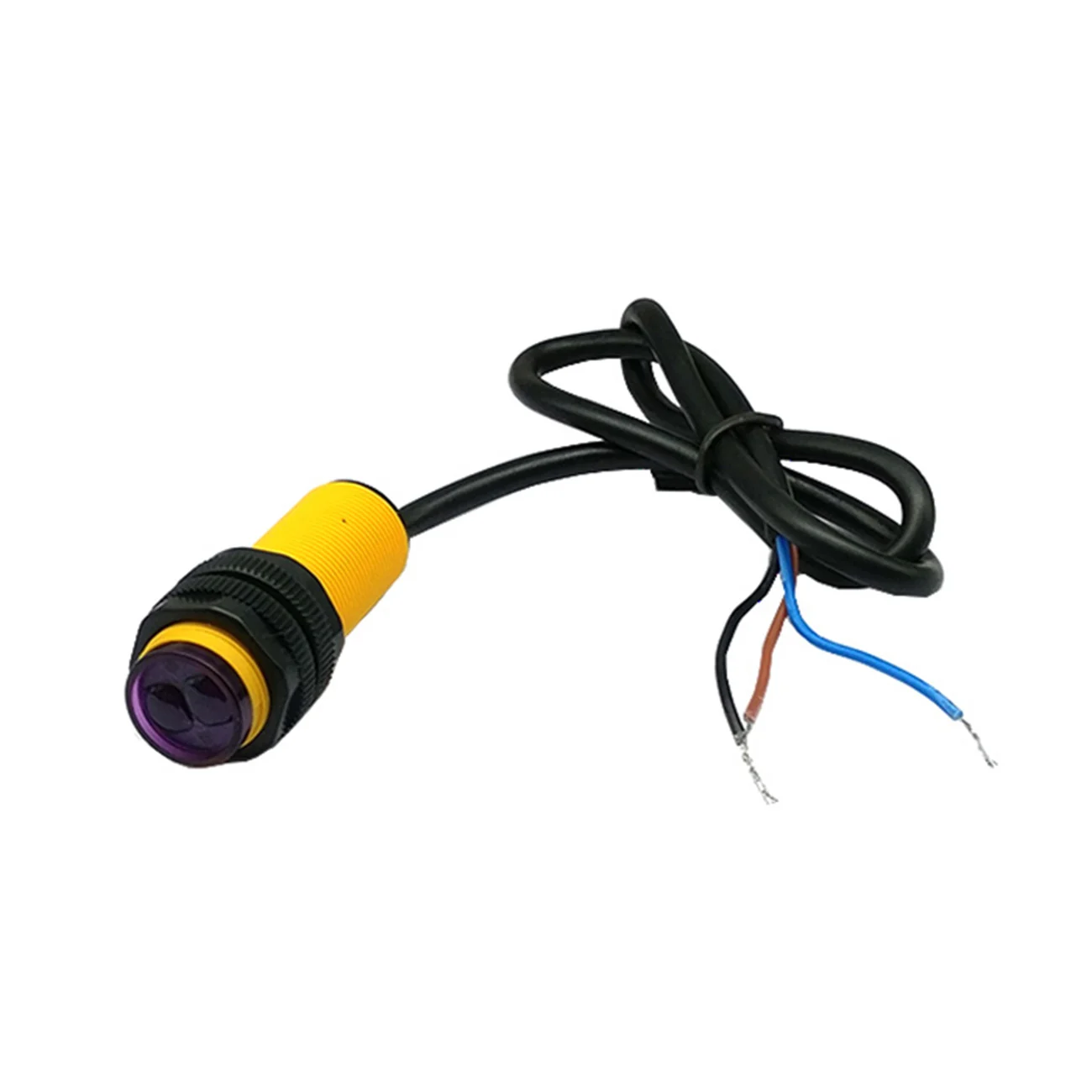

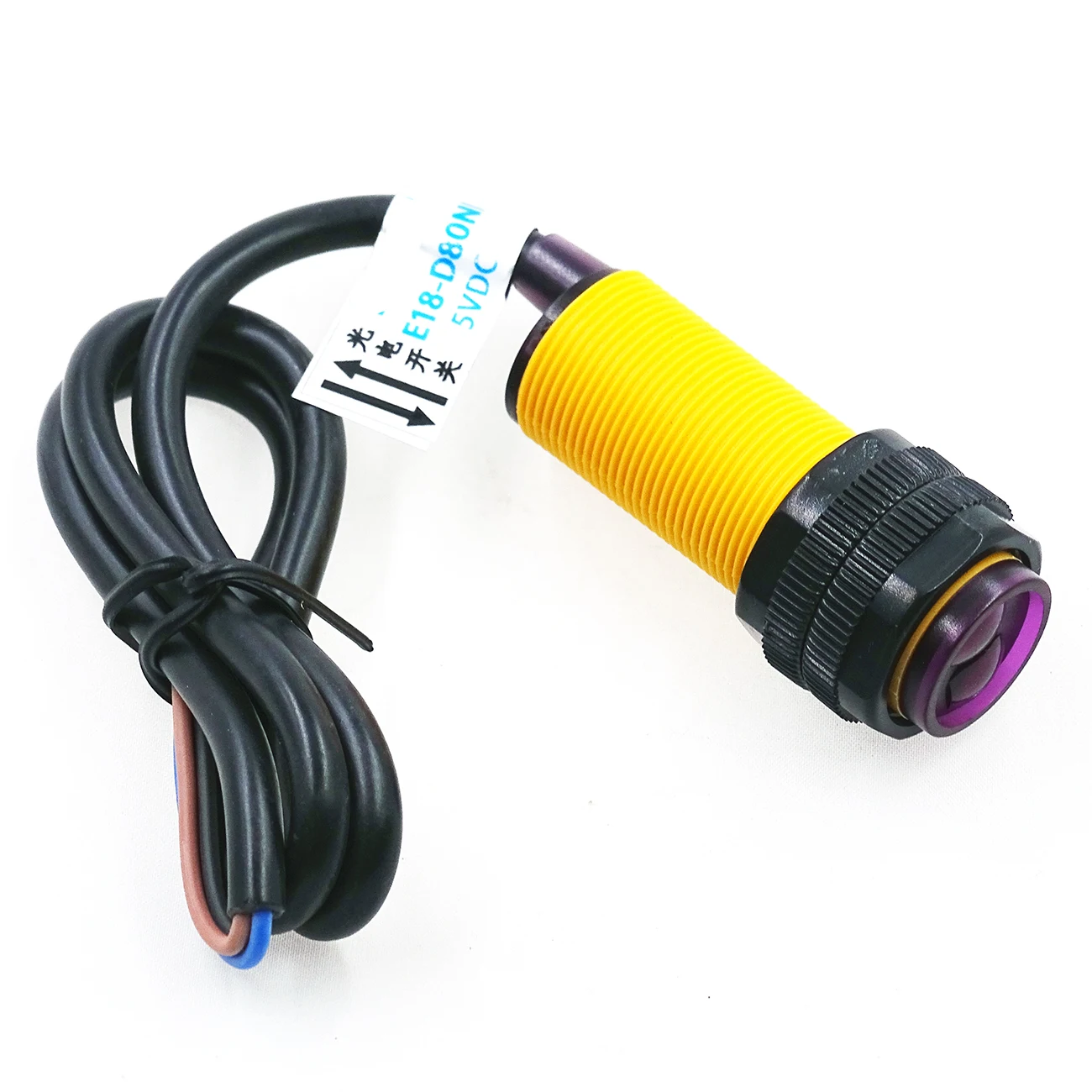

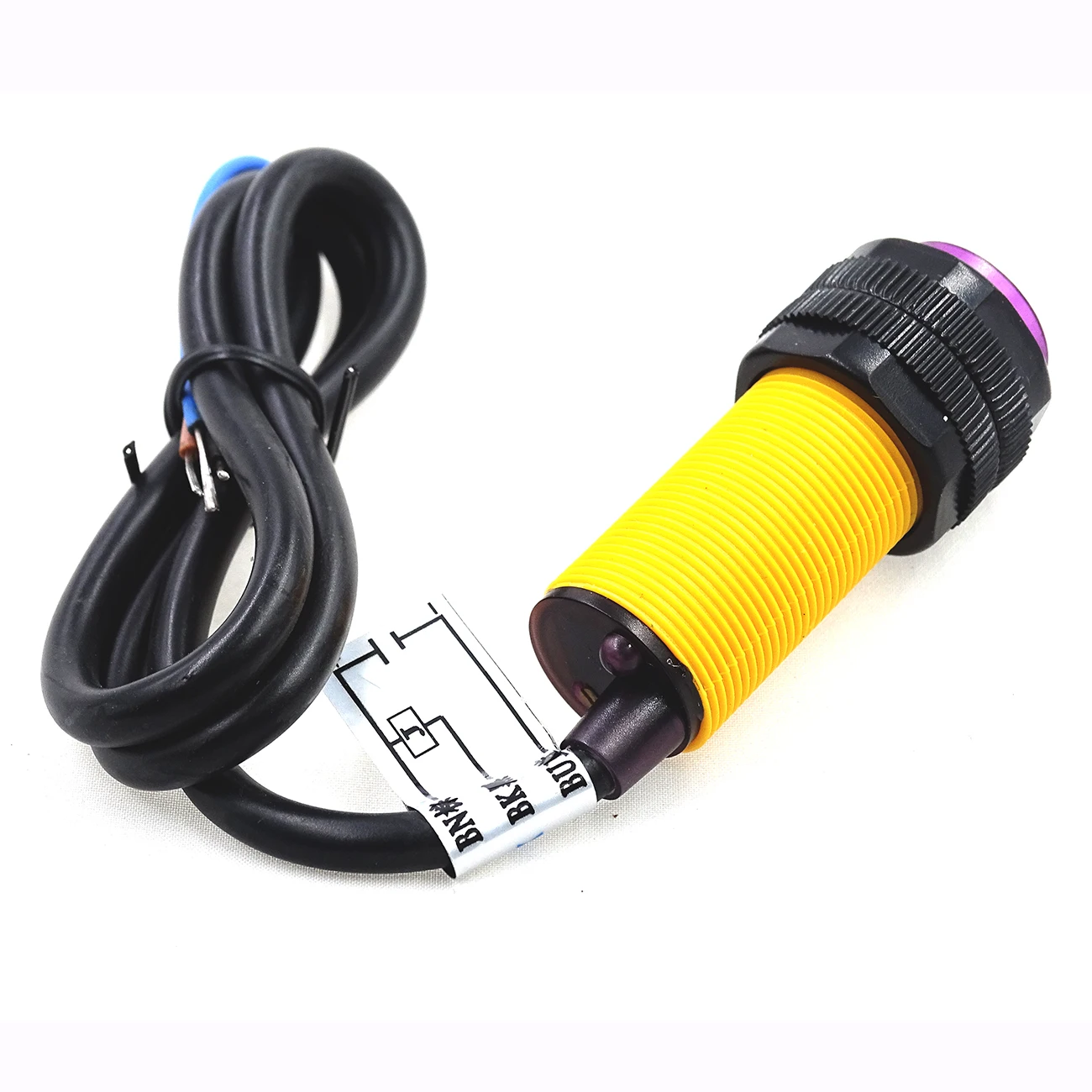

E18-D80NK Infrared Sensor Proximity Switch

Description:
This is a collection of emission and reception in one photoelectric sensor.
Detection distance can be adjusted according to requirements.
The sensor has a detection range, interference by visible light small, easy to assemble, easy to use and so on.
Can be widely used in robot obstacle avoidance, assembly line and many other automated products.
Photoelectric sensor (photoelectric switch) NPN normally open.Applications:
1. Production line automatic counting equipment
2. Multi-function reminder
3. Go maze robot
4. Kitchen automation system
5. Security anti-theft system

Specifications:
Photoelectric switch E18 technical parameters:
1. The output current DC / SCR / Relay Control output: 100mA / 5V power supply
2. Current consumption DC <25mA
3. Response time <2ms
4. Pointing angle: ≤ 15 °, the effective distance 3-80CM adjustable
5. Testing objects: transparent or opaque body
6. The working environment temperature: -25 ° ~ +55 °
7. The standard test objects: below the sun 10000LX incandescent 3000LX following
8. Shell material: Plastic
Electrical Characteristics:
U: 5V DC
I: 100mA
Sn: 3-80cm/1.18-31.5″
Size: 4.8×2.2cm/1.89×0.87″
Lead length: 16cm/6.3″
