Mw33 Digital Temperature And Humidity Temperature Sensor Module

Description

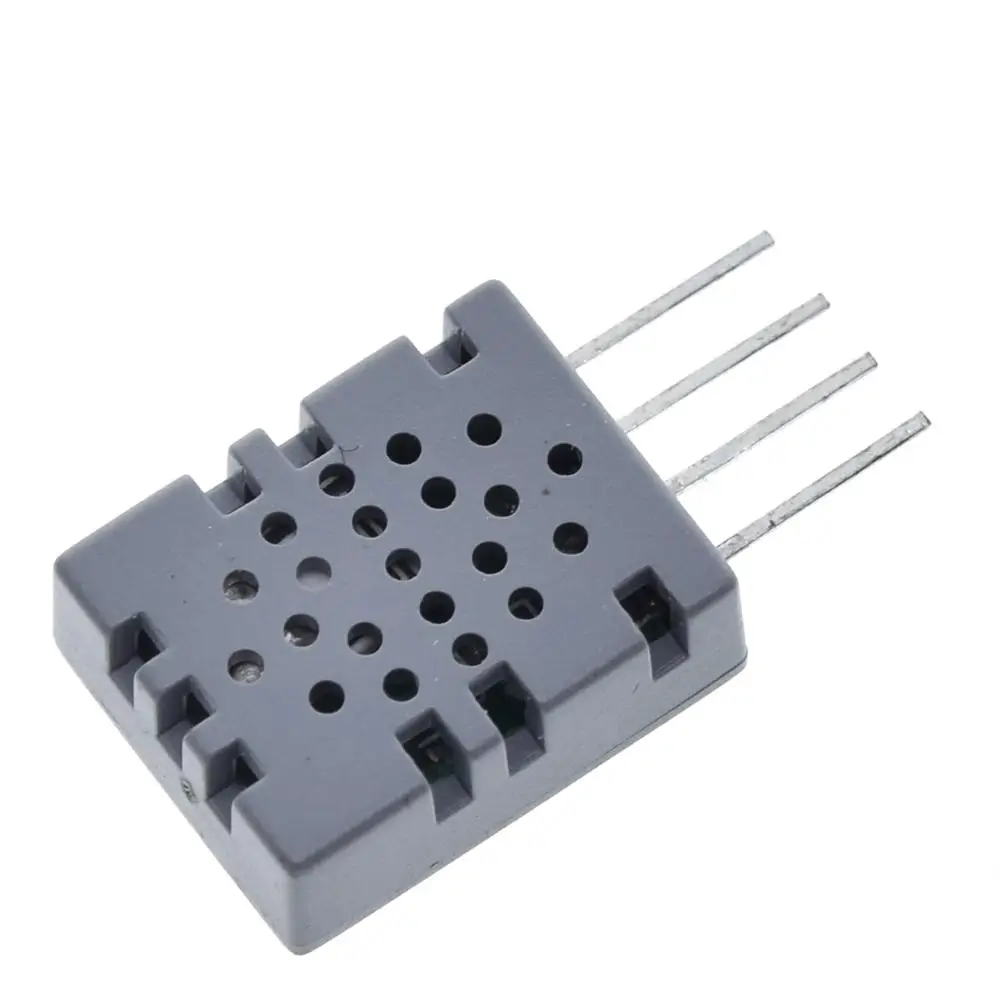

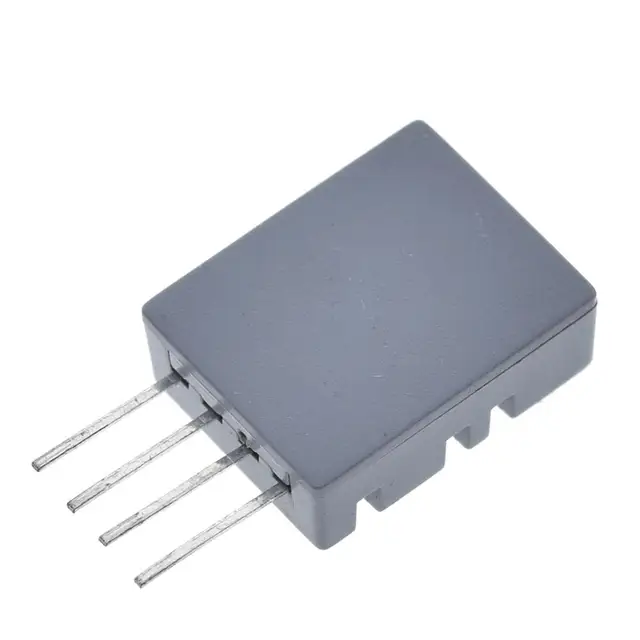

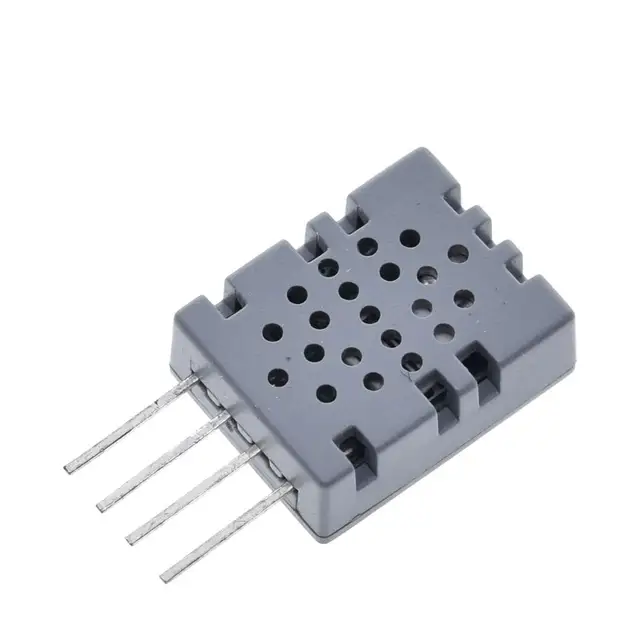

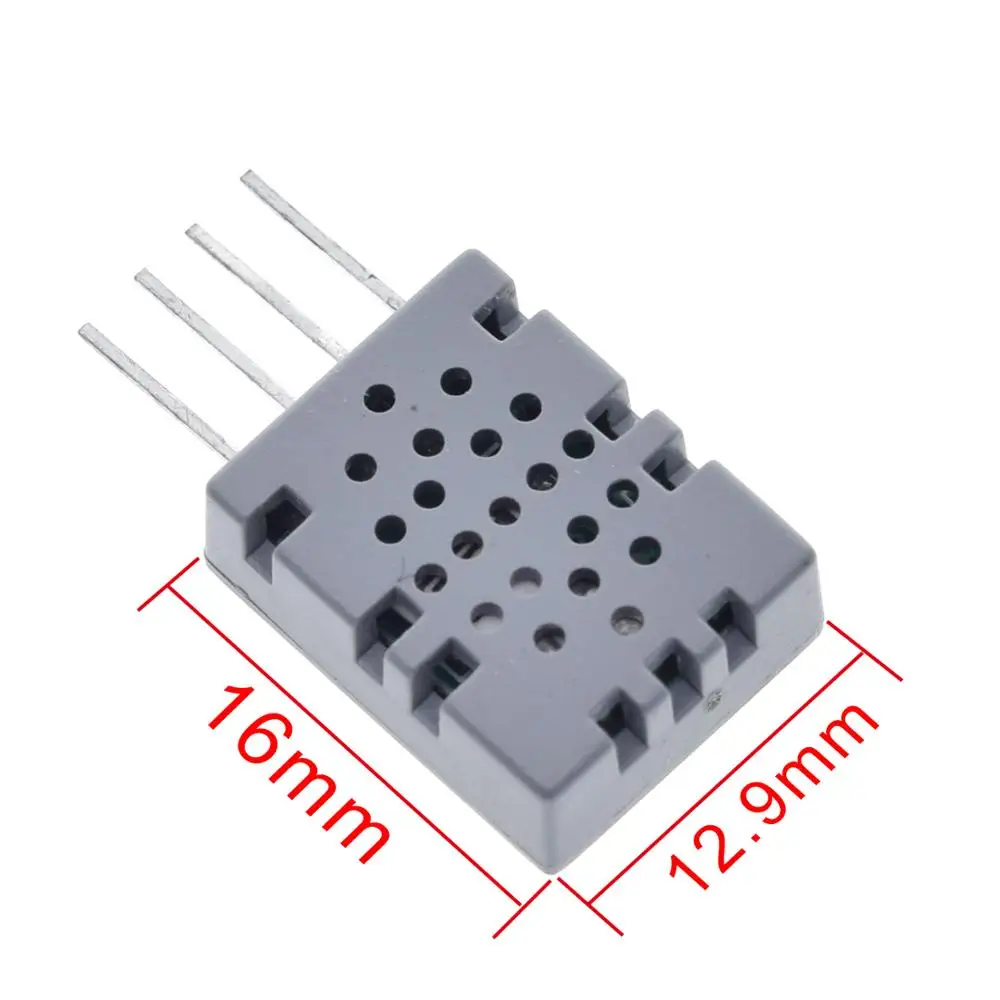

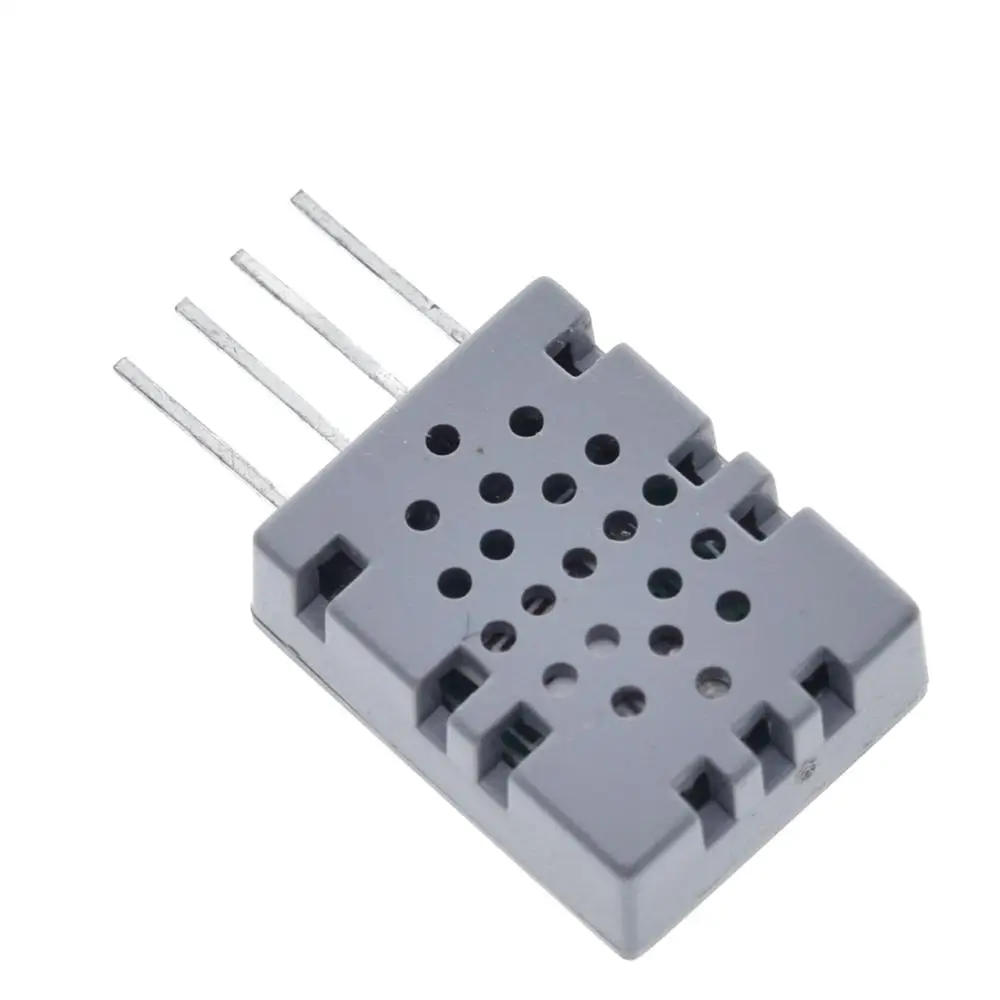

Digital Temperature And Humidity Sensor MW33 DHT11 Module

• Can detect the ambient humidity and temperature
• Sensor DHT11
• Humidity measuring range: 20% -95% (0 degrees -50 degrees) Humidity measurement error: + -5%
• Temperature measurement range: 0 degrees -50 degrees temperature measurement error: + -2 degrees
• Operating voltage 3.3V-5V
• Output Type Digital Output
• With fixed bolt hole for easy installation
• Small plates PCB size: 1.9cm * 1.7cm
• Power LED (red)
• Each weighs about 8g

• Two module interface specification (3-wire)
• VCC external 3.3V-5V
• GND External GND
• DO small plate switch digital output interface connected IO port
