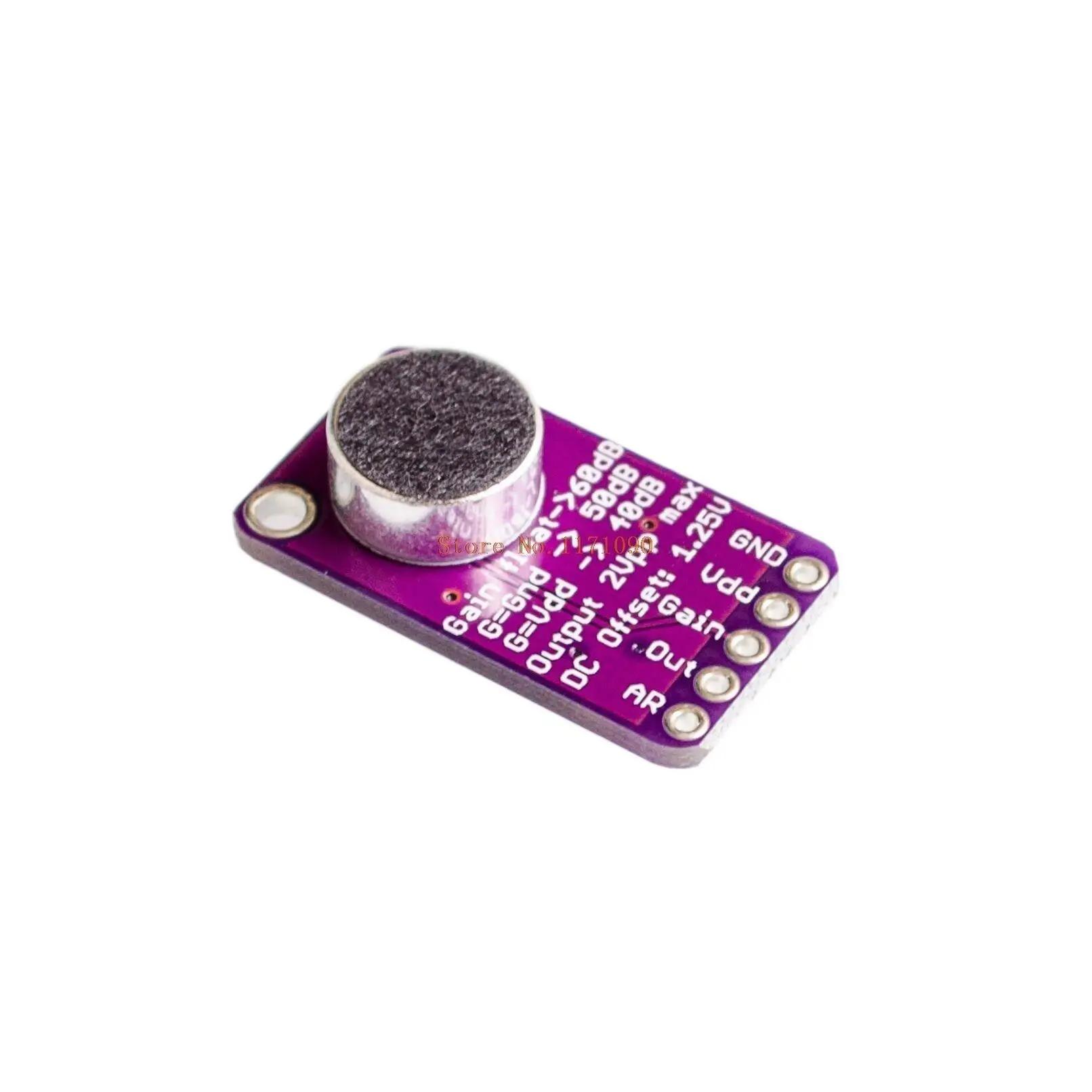

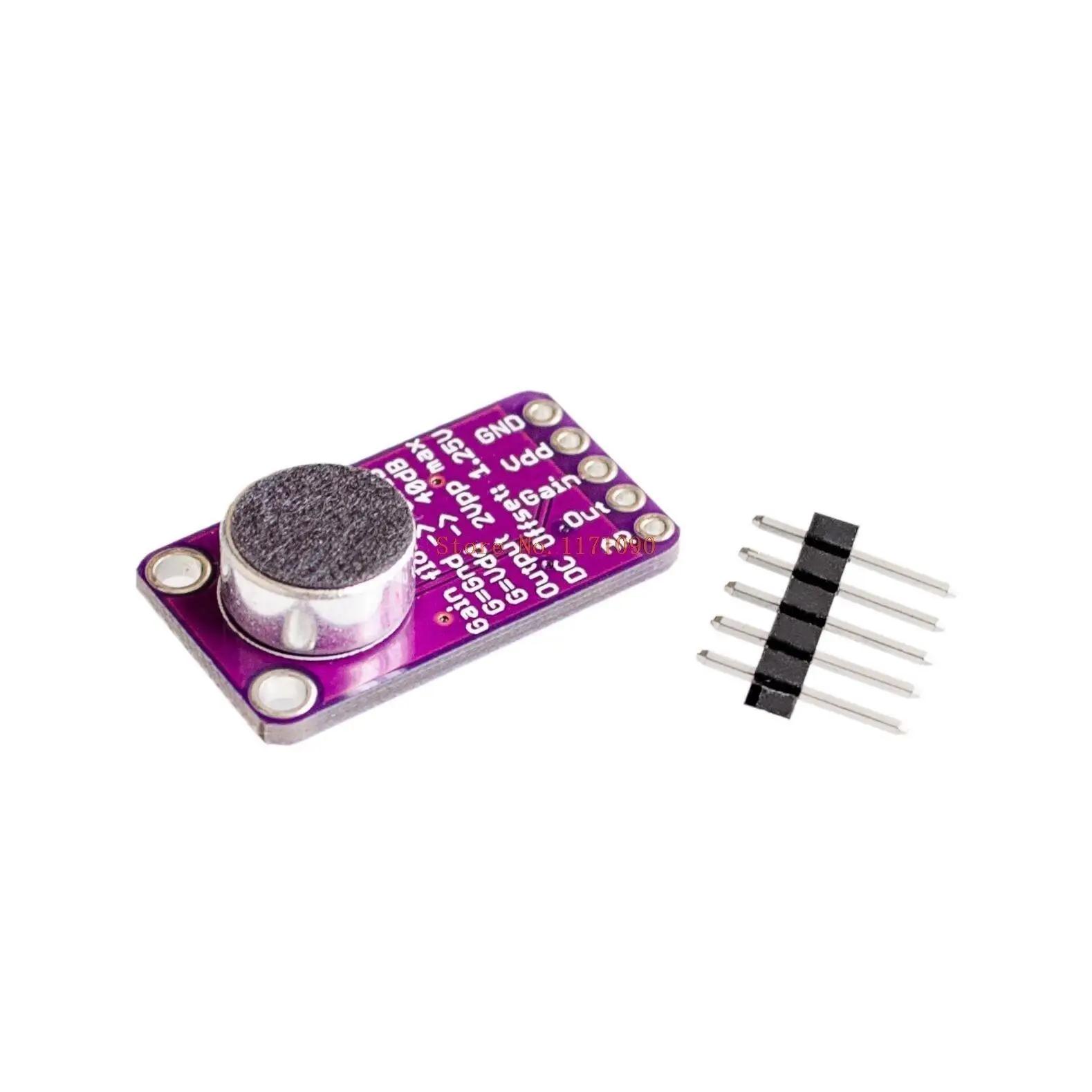

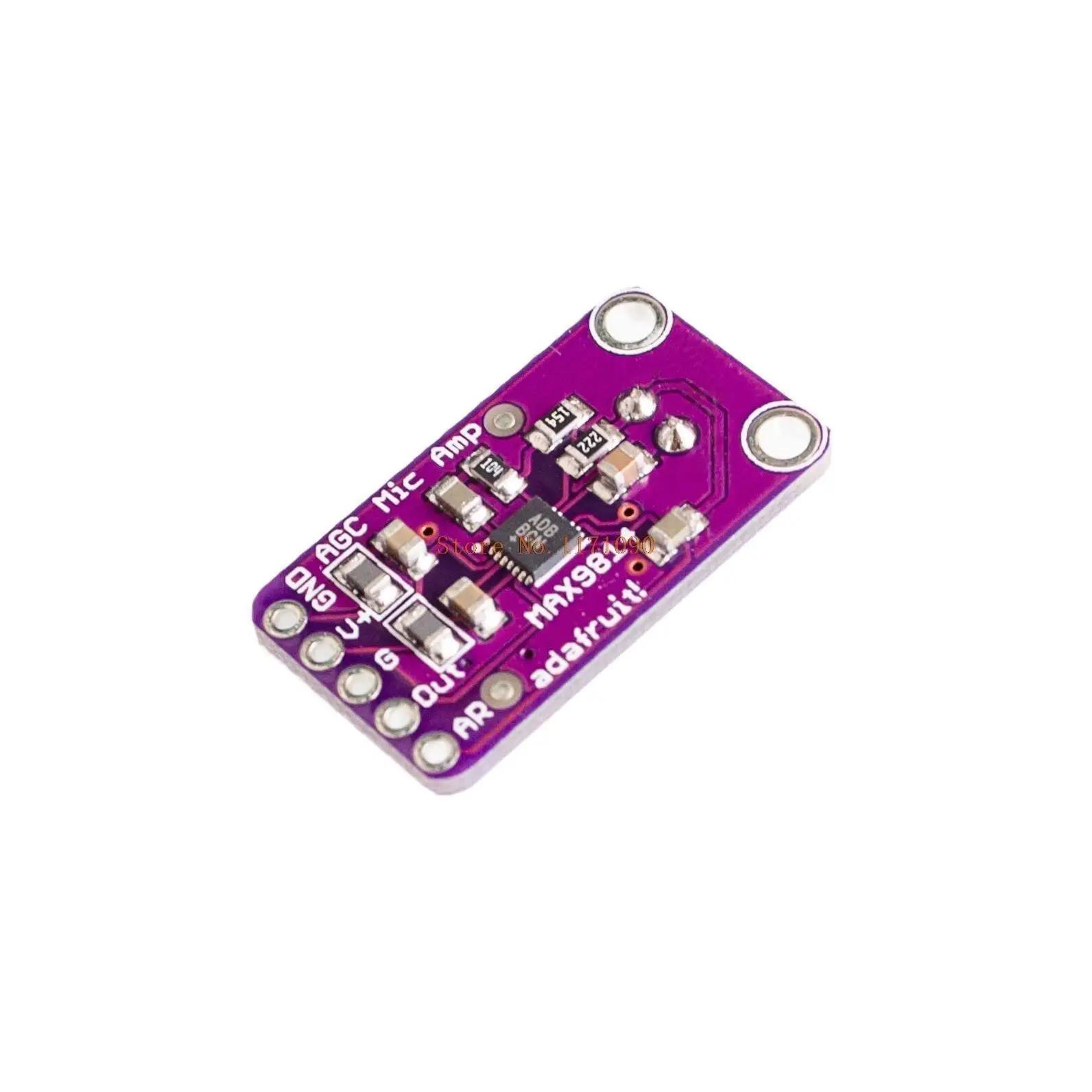

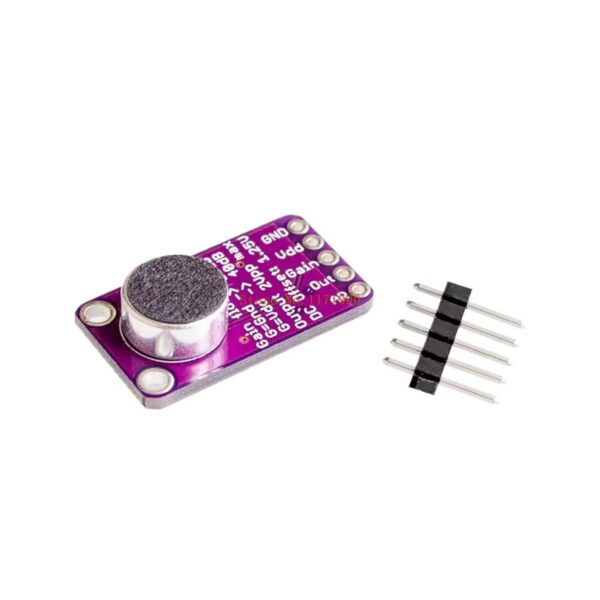

MAX9814 Electret Microphone Amplifier Module with Auto Gain Control (AGC) – For Arduino & Audio Projects
Product Description
Add high-quality sound detection to your electronics project with the MAX9814 Electret Microphone Amplifier Module with Automatic Gain Control (AGC). This compact, reliable board is designed for Arduino, microcontrollers, and audio-reactive projects.
Featuring a built-in low-noise electret microphone, a powerful MAX9814 amplifier IC, and automatic gain adjustment, this module ensures crystal-clear audio capture across a wide frequency range of 20Hz–20kHz. The AGC automatically adjusts sensitivity, making it ideal for voice recognition, sound sampling, recording, and reactive applications such as LED sound visualizers or FFT-based projects.
Unlike many other microphone boards, the MAX9814 delivers low noise, low distortion (THD: 0.04% typ), and excellent power supply rejection, making it stable even in noisy environments.
Key Features
-
Automatic Gain Control (AGC) – Adjustable gain levels at 40dB, 50dB, or 60dB
-
Low Noise Performance – Input-referred noise density as low as 30nV/√Hz
-
Frequency Response – Full audio spectrum: 20Hz to 20kHz
-
Low THD (Total Harmonic Distortion) – 0.04% (typical) for clean sound capture
-
Flexible Power Supply – Operates from 2.7V to 5.5V at ~3mA current
-
Output – 2Vpp on 1.25V bias, rail-to-rail capability up to 5Vpp
-
Compact Size – Space-saving 14-pin TDFN package on a breakout board
-
Wide Temperature Range – Operates from -40°C to +85°C
-
Low-Power Shutdown Mode
Technical Specifications
-
Supply Voltage: 2.7V – 5.5V
-
Current Consumption: ~3mA
-
Output: 2Vpp on 1.25V bias, rail-to-rail up to 5Vpp
-
Gain Settings: 40dB / 50dB / 60dB (selectable)
-
Frequency Response: 20Hz – 20kHz
-
Input Noise Density: 30nV/√Hz
-
THD: 0.04% typical
-
Operating Temp Range: -40°C to +85°C
How to Use
-
Wiring: -
Connect VCC to 2.4–5VDC (use the quietest supply possible, e.g., 3.3V on Arduino).
-
Connect GND to ground.
-
Connect OUT to your microcontroller ADC pin or audio input device.

-
-
Output Signal: -
The output signal is DC-biased at VCC/2. For AC-coupled equipment, use a 100µF capacitor between OUT and your device.

-
-
Applications: -
Voice changers
-
Sound recording & sampling
-
Audio-reactive LED/music projects
-
FFT-based frequency analysis
-
Microphone input for Arduino/MCU projects

-
⚠️ Note: This module cannot directly drive speakers. For audio output, pair with a power amplifier.
Package Includes
-
1 × MAX9814 Electret Microphone Amplifier Module
