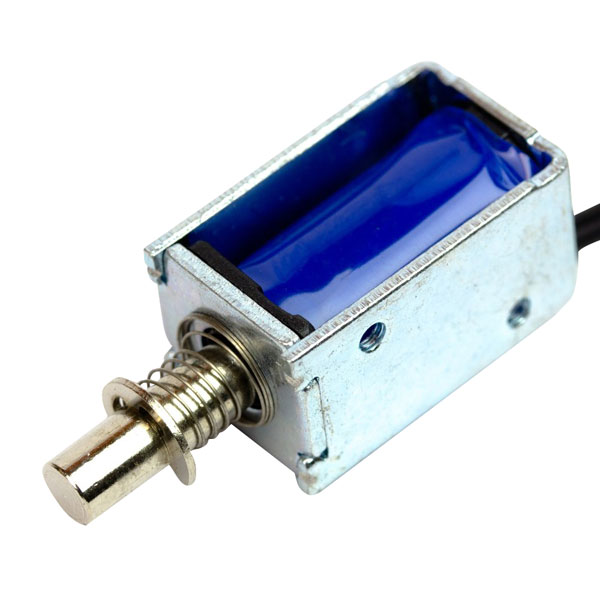

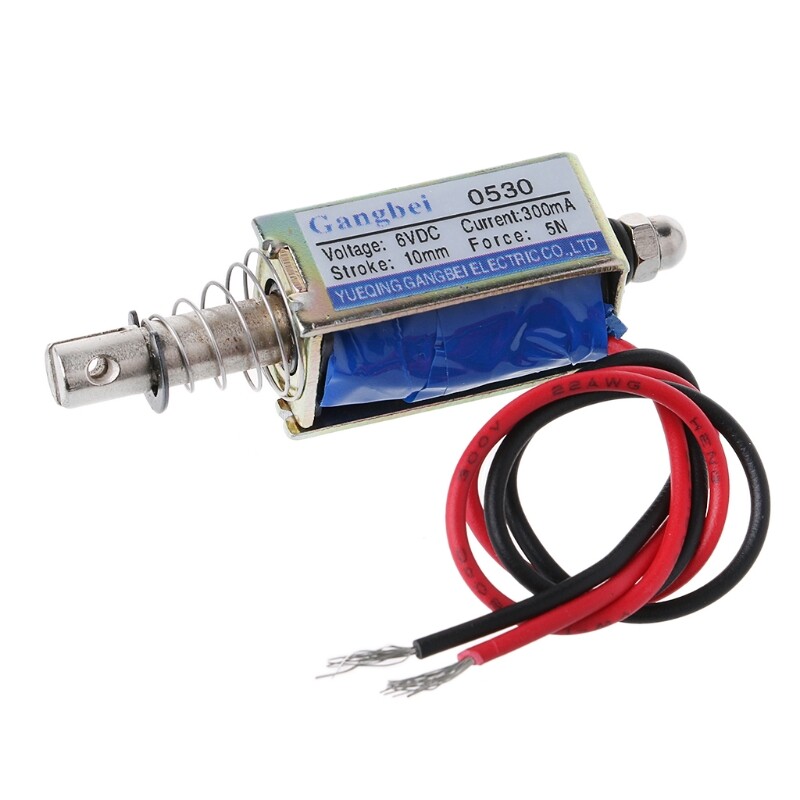

JF-0530B DC12V Electromagnet Push-Pull Solenoid

Description

JF-0530B DC12V Electromagnet Push-Pull Solenoid is fairly small, with a 30mm long body and a ‘captive’ armature with a return spring. This means that when activated with up to 12VDC, the solenoid moves and then the voltage is removed it springs back to the original position, which is quite handy.

Specifications:

Nominal voltage: DC6V/12V
Type: push
Nominal current: 300mA
Strength and stroke: 5N/10mm
Material: Metal, electronic parts
Pull the type of thrust, linear movement, piston return, electronic DC solenoid magnet.
Solenoids in this category work externally through the thrust of the plunger.
When it is energized, do the job by pushing joined objects into the plunger.
DC solenoid electromagnet mainly used in vending machines, transport equipment, appliances for office facilities, mechanics, etc.

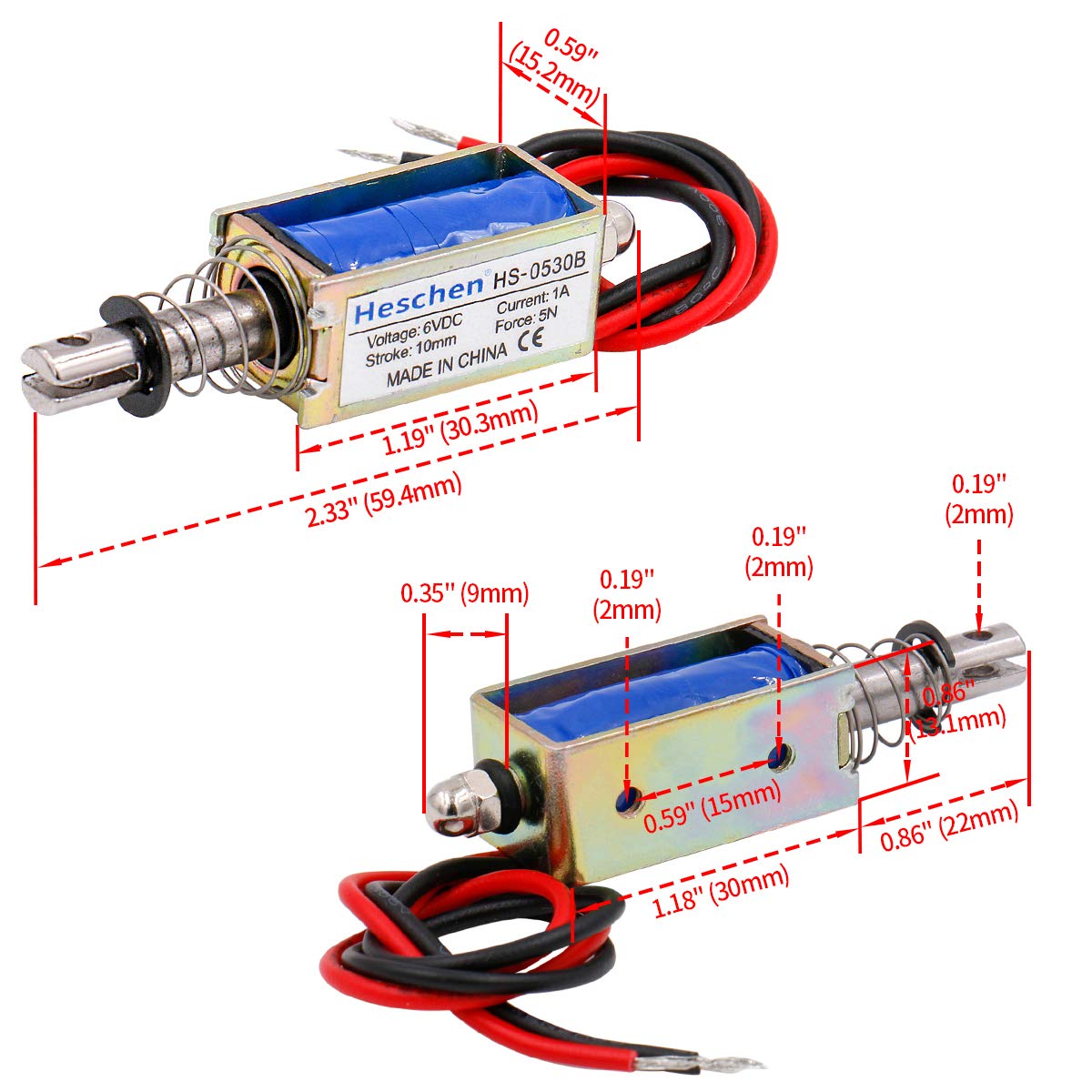

Size: 5.8×1.5*0.8 cm / 28×0.59×0.31 inch

Package Included:
1*JF-0530B DC12V electromagnet Push-Pull solenoid
