Description

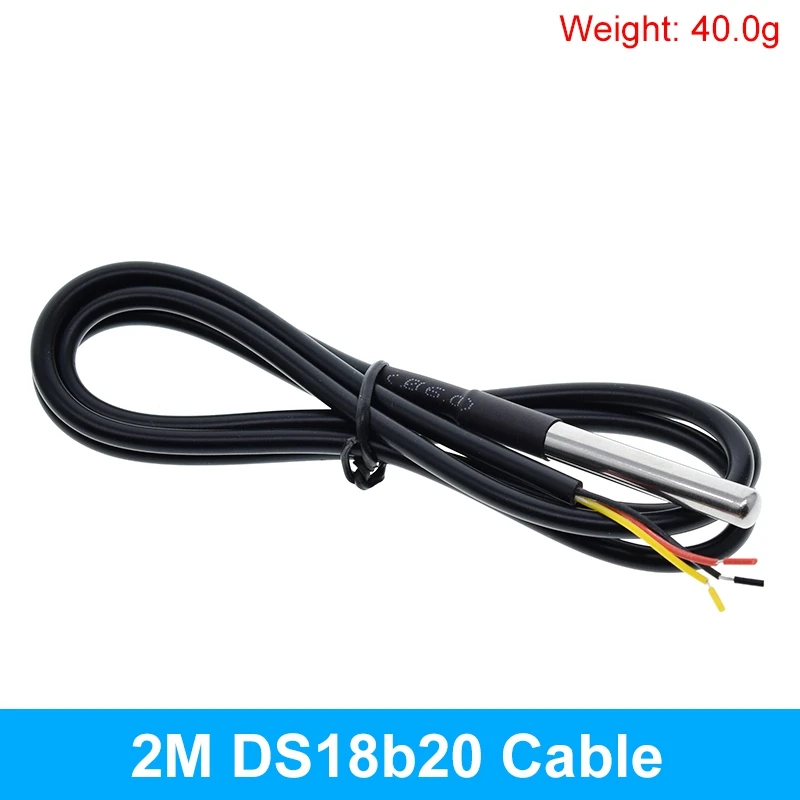

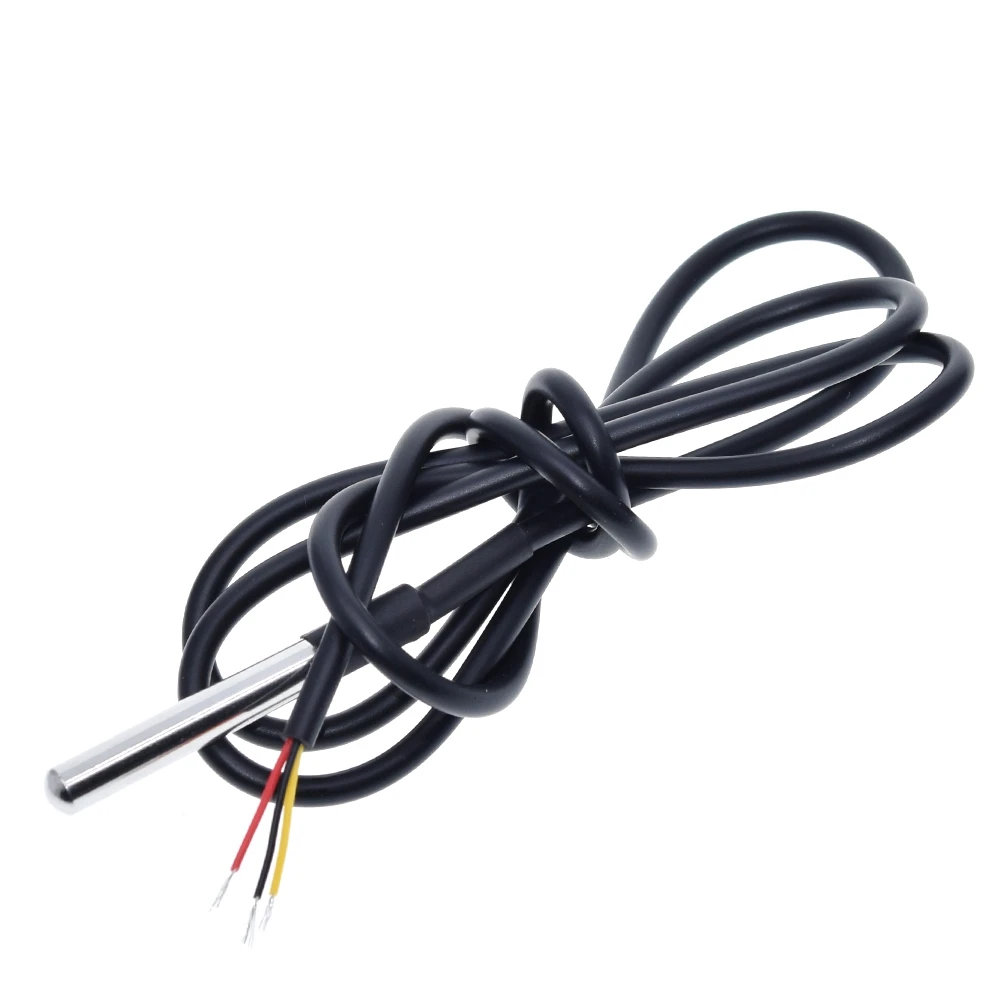

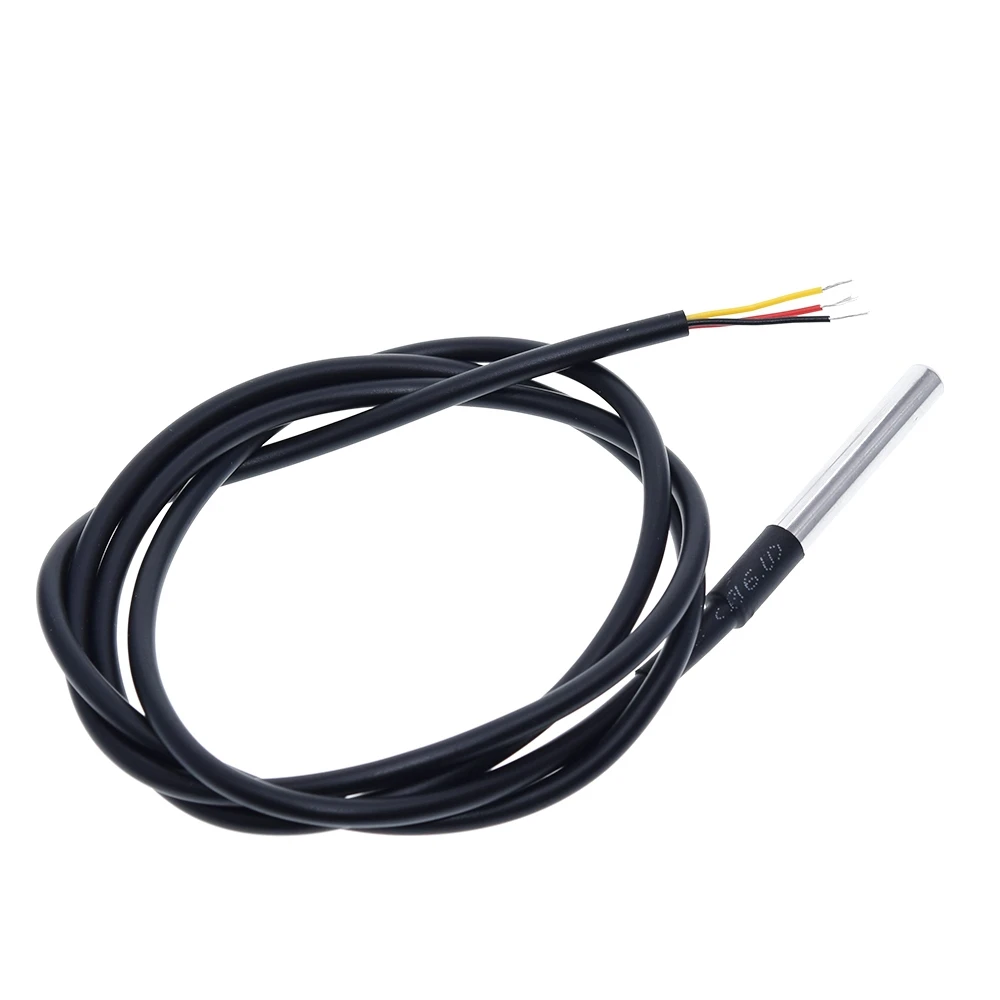

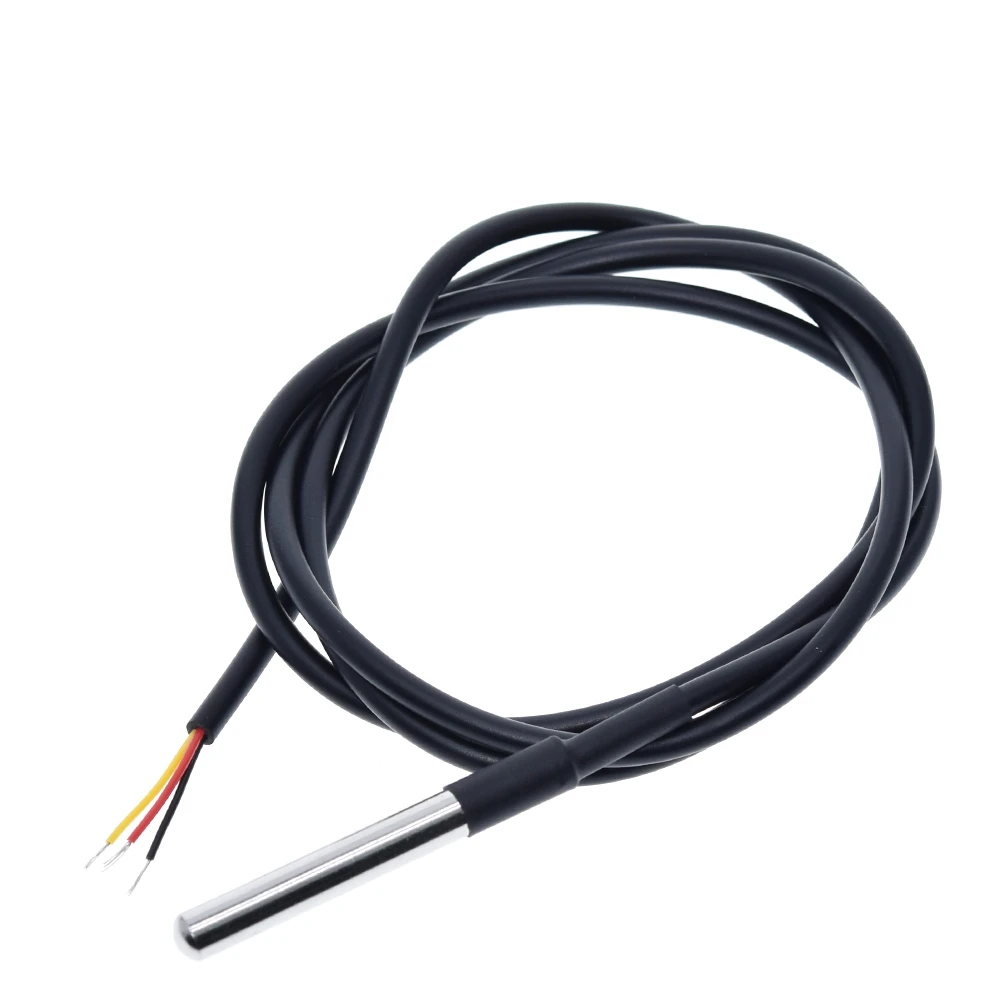

DS18B20 Temperature Sensor Module Kit with Waterproof 1 2 3 Meter DS1820 Stainless Waterproof DS18b20 Temperature Sensor Probe
Description:
Pluggable terminal waterproof DS18B20 temperature sensor can be used in many places, such as soil temperature detection, hot water tank temperature control, waterproof DS18B20 temperature sensor must also be connected to a pull-up resistor can be used, for which we designed the converter to send use.
Product Specifications:
Temperature sensor supply voltage: 3.0V ~ 5.5V
Temperature sensor resolution: 9 to 12 adjustable resolutions
Temperature range: -55 ~ +125 ° (lead can only withstand the highest temperature of 85 degrees)

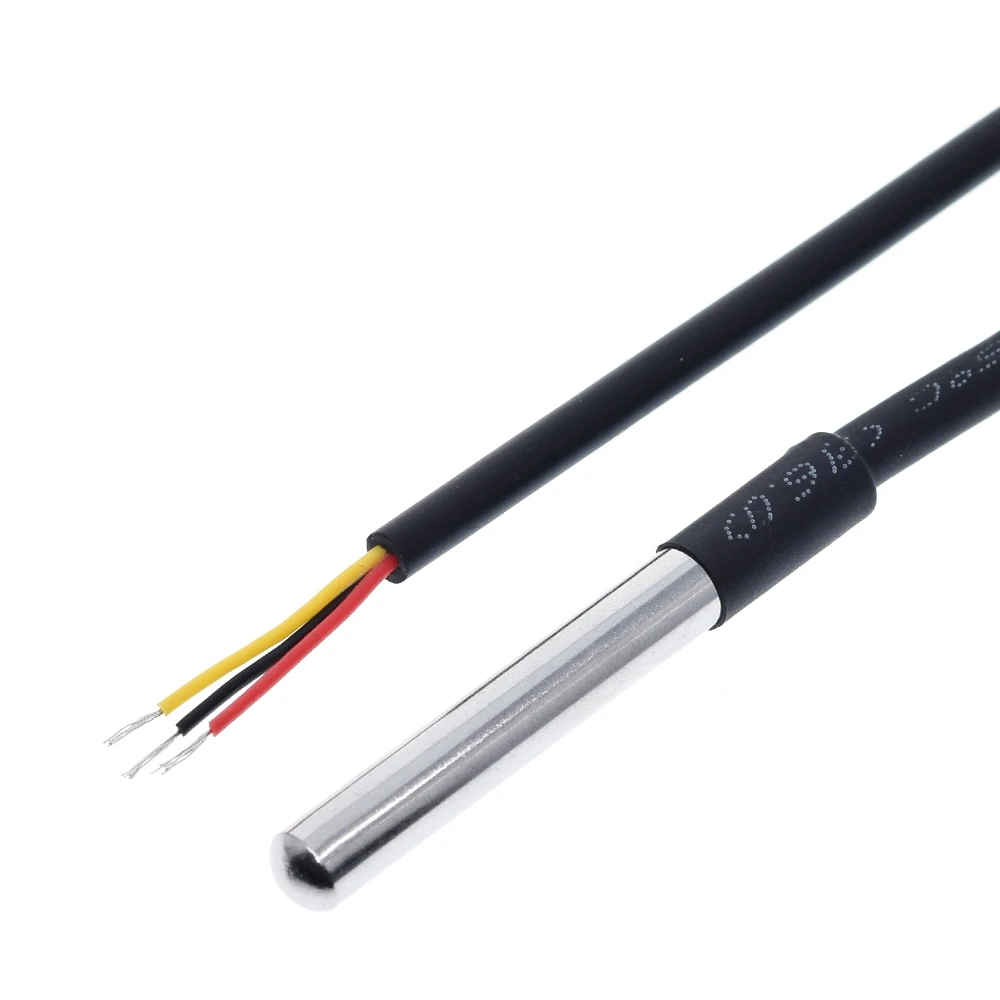

Temperature Sensor Output Lead: Yellow (DATA) Red (VCC) and Black (GND)
Adapter Cables: DATA, VCC, BLK,
Suitable platform: for Arduino and Raspberry Pi

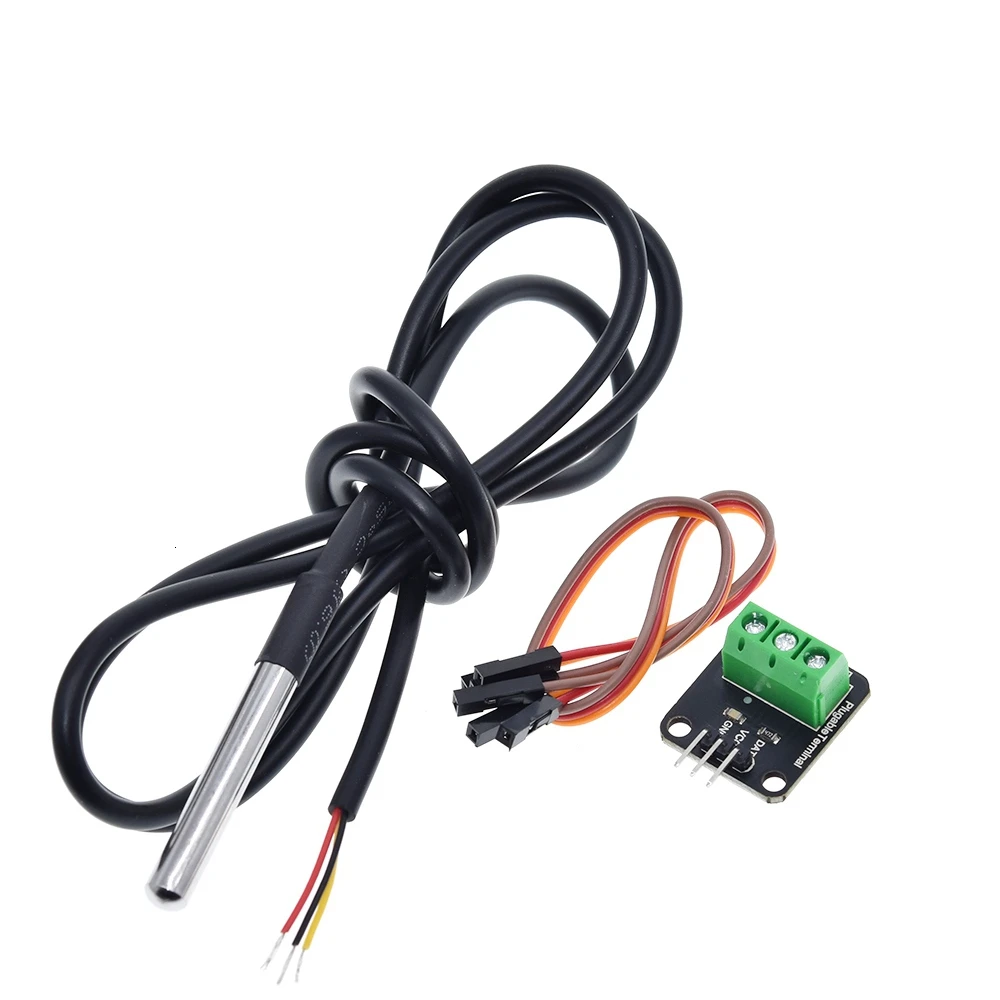

Package Included:
1PC * 1M DS18B20 temperature sensor
1PC * pluggable terminal adapter
1PC * 3pin cable
Description:
Pluggable terminal waterproof DS18B20 temperature sensor can be used in many places, such as soil temperature detection, hot water tank temperature control, waterproof DS18B20 temperature sensor must also be connected to a pull-up resistor can be used, for which we designed the converter to send use.
Specifications:
Temperature sensor supply voltage: 3.0V ~ 5.5V
Temperature sensor resolution: 9 to 12 adjustable resolutions
Temperature range: -55 ~ +125 ° (lead can only withstand the highest temperature of 85 degrees)
Temperature Sensor Output Lead: Yellow (DATA) Red (VCC) and Black (GND)
Adapter Cables: DATA, VCC, BLK,
Suitable platform: for Arduino and Raspberry Pi
Output lead: RED(VCC),YELLOW(DATA),BLACK(GND)
