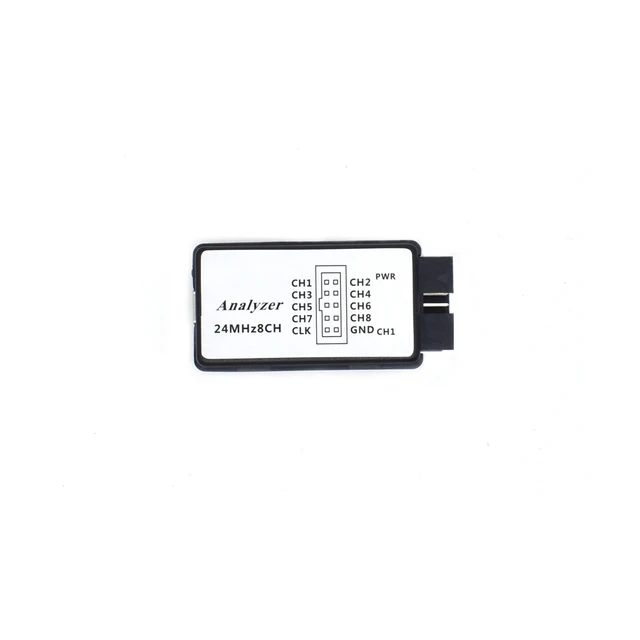

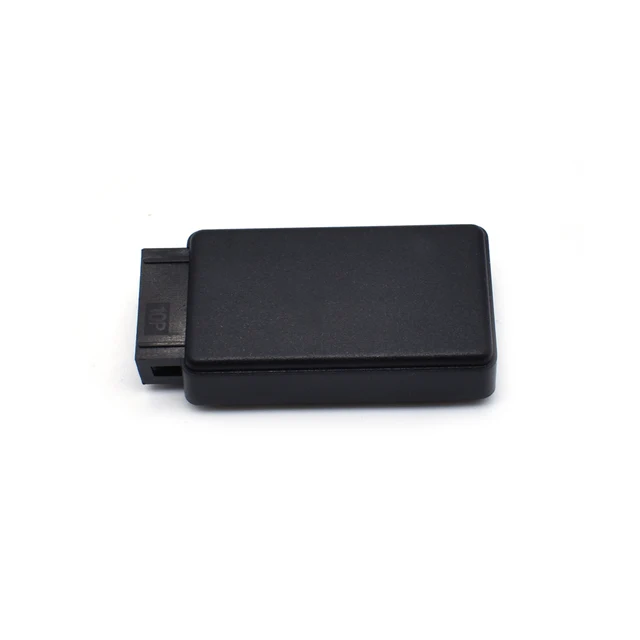

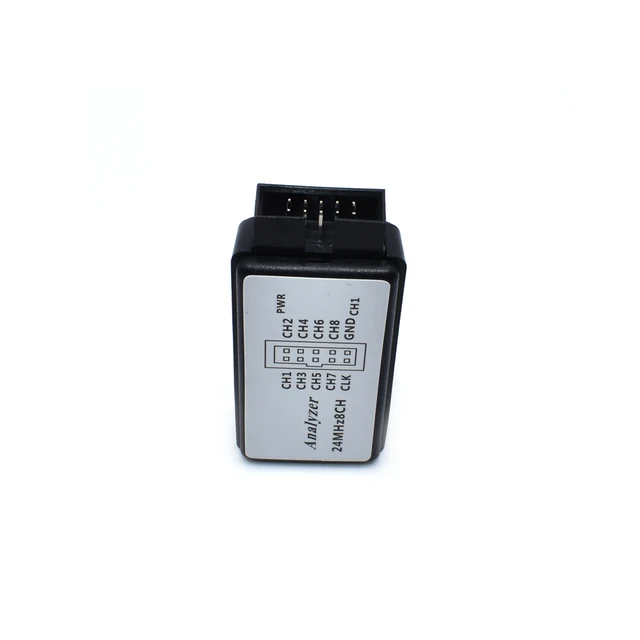

USB Logic Analyzer 24MHz 8 Channel – High-Speed Logic Debugger for ARM & FPGA
Product Overview
The USB Logic Analyzer 24MHz 8 Channel is a powerful and compact tool designed for developers working with ARM, FPGA, microcontrollers, and digital circuits. With real-time data upload, 24M/s sampling speed, and support for multiple operating systems, this logic analyzer is an essential debugging accessory for embedded systems and electronics projects.
Whether you’re troubleshooting signals, analyzing digital communication, or learning microcontroller protocols, this 8-channel USB logic analyzer provides accurate and reliable results.
Key Features
-
High-Speed Sampling: Up to 24MHz (24M/s) for fast and precise signal analysis.
-
8 Input Channels: Capture and analyze multiple signals simultaneously.
-
USB Powered: Easy plug-and-play operation with no external power required.
-
Real-Time Data Upload: Maximum capture depth of 10T, suitable for long signal analysis.
-
Cross-Platform Support: Compatible with Windows 7 (32/64-bit), Windows 2000, XP, and Linux.
-
Logical Level Indication: Small LED indicator for CH0 electrical level.
Specifications
-
Type: Logic Analyzer
-
Material: Plastic
-
Color: Black
-
Sampling Rate: 24M/s (24MHz)
-
Channels: 8 digital inputs
-
Input Characteristics: 5pF, 100KΩ
-
Indicator: LED for CH0 logic state
-
Power Supply: USB powered

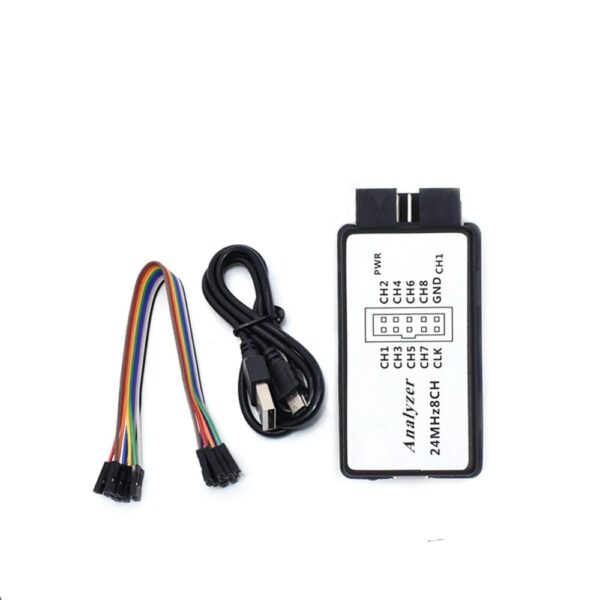

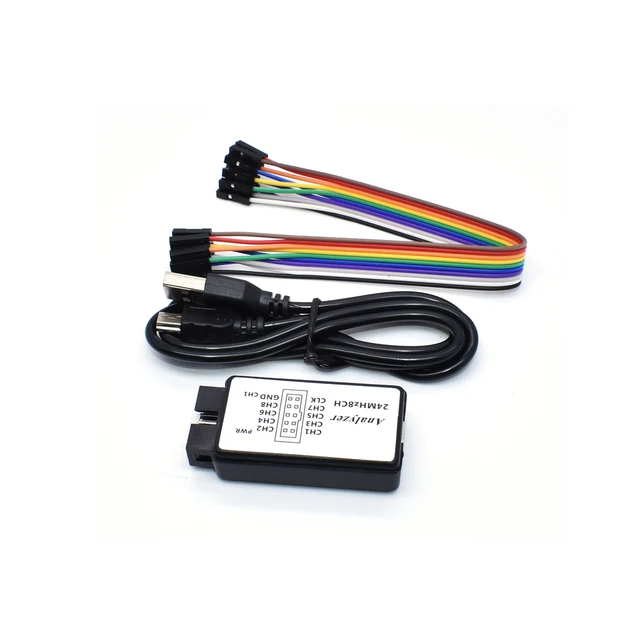

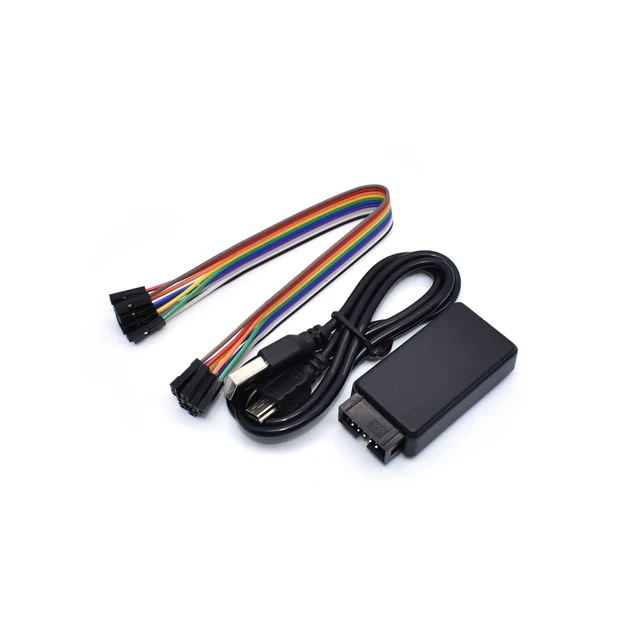

Package Includes
-
1 × USB Logic Analyzer (24MHz 8CH)
-
1 × USB Cable
-
1 × Connection Sorting Wires
Applications
-
ARM and FPGA debugging
-
Microcontroller signal analysis
-
Embedded system development
-
Digital circuit troubleshooting
-
Protocol decoding (UART, SPI, I2C, etc.)
