Description

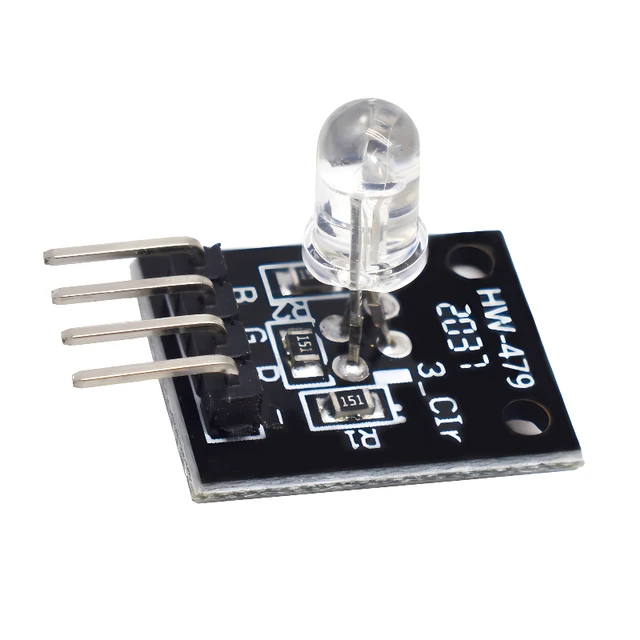

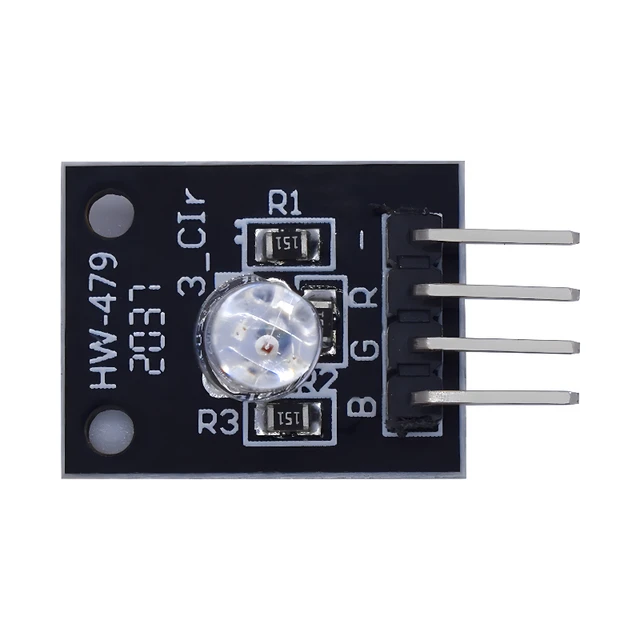

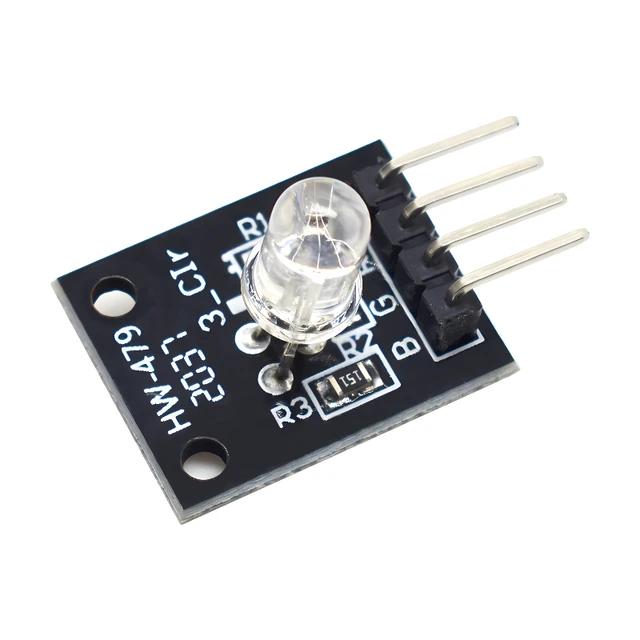

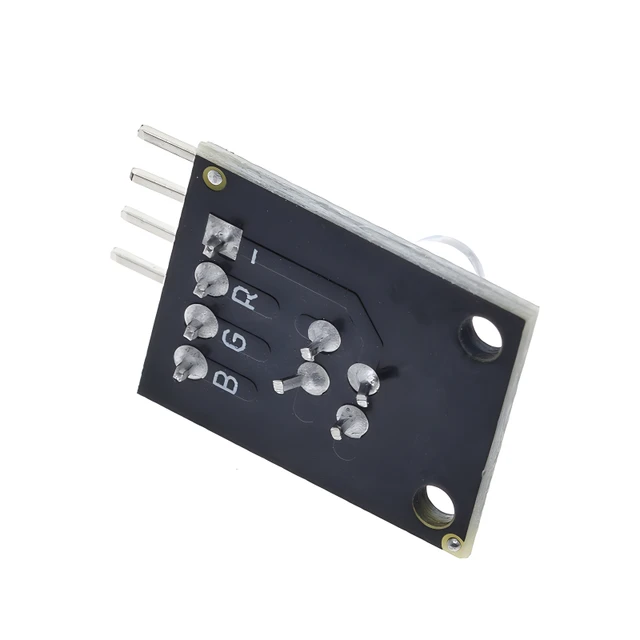

KY-016 RGB LED Module (FZ0455) for Arduino DIY
The Smart Electronics KY-016 RGB LED Module (FZ0455) is a versatile 4-pin RGB LED sensor module designed for Arduino and other microcontrollers. This module contains red, green, and blue LEDs that can be combined to produce a wide range of colors. By adjusting the duty cycle of each LED using PWM (Pulse Width Modulation), you can create almost any color output.
This makes the KY-016 module ideal for DIY projects, Arduino starter kits, learning electronics, and creative lighting applications.
Key Specifications
-
Model: KY-016 (FZ0455)
-

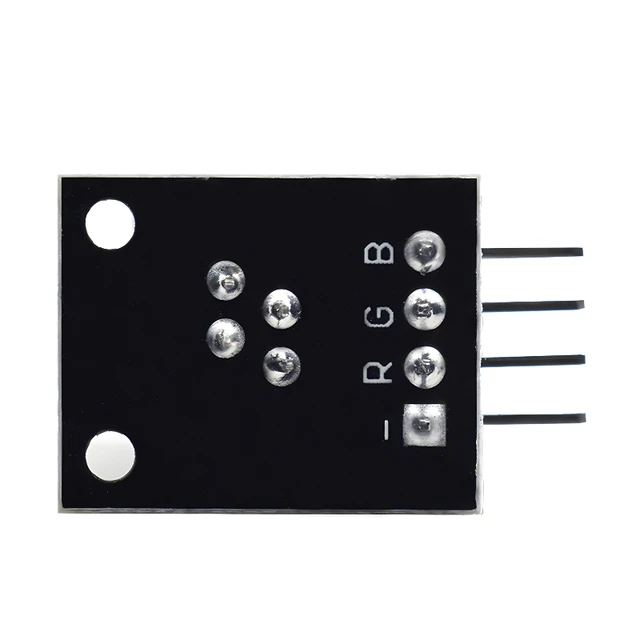

Pins: 4-pin interface (R, G, B, and GND)
-
Operating Voltage: 3.3V – 5V
-
LED Colors: Red, Green, Blue (RGB)
-
Control: PWM control for mixed colors
-

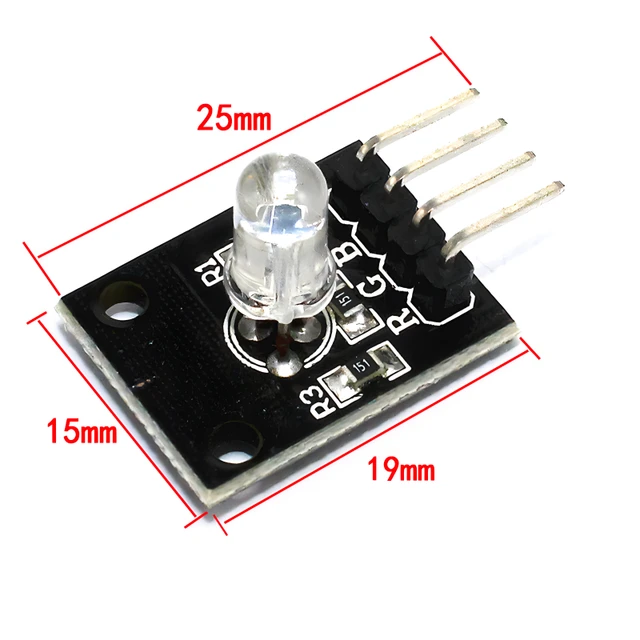

Size: Compact, breadboard-friendly design
Features and Benefits
-
Three built-in LEDs (RGB) with shared cathode
-
Produces millions of color combinations with PWM
-
Easy 4-pin connection to Arduino and other boards
-
Low power consumption
-
Perfect for visual indicators, lighting effects, and creative displays
Applications
The KY-016 RGB LED sensor module is widely used in:
-
DIY Arduino lighting projects
-
RGB decorative lights
-
Electronic experiments and learning kits
-
Mood lights and LED displays
-
Robotics and indicators
How to Use KY-016 RGB LED Module with Arduino
-
Wiring:
-
R → Arduino PWM pin (e.g., D9)
-
G → Arduino PWM pin (e.g., D10)
-
B → Arduino PWM pin (e.g., D11)
-
GND → Ground
-
-
Arduino Example Code:
int redPin = 9;
int greenPin = 10;
int bluePin = 11;
void setup() {
pinMode(redPin, OUTPUT);
pinMode(greenPin, OUTPUT);
pinMode(bluePin, OUTPUT);
}
void loop() {
analogWrite(redPin, 255); // Red ON
analogWrite(greenPin, 0);
analogWrite(bluePin, 0);
delay(1000);
analogWrite(redPin, 0); // Green ON
analogWrite(greenPin, 255);
analogWrite(bluePin, 0);
delay(1000);
analogWrite(redPin, 0); // Blue ON
analogWrite(greenPin, 0);
analogWrite(bluePin, 255);
delay(1000);
analogWrite(redPin, 255); // White (all ON)
analogWrite(greenPin, 255);
analogWrite(bluePin, 255);
delay(1000);
}
Package Includes
-
1 x KY-016 RGB LED Module (FZ0455)
