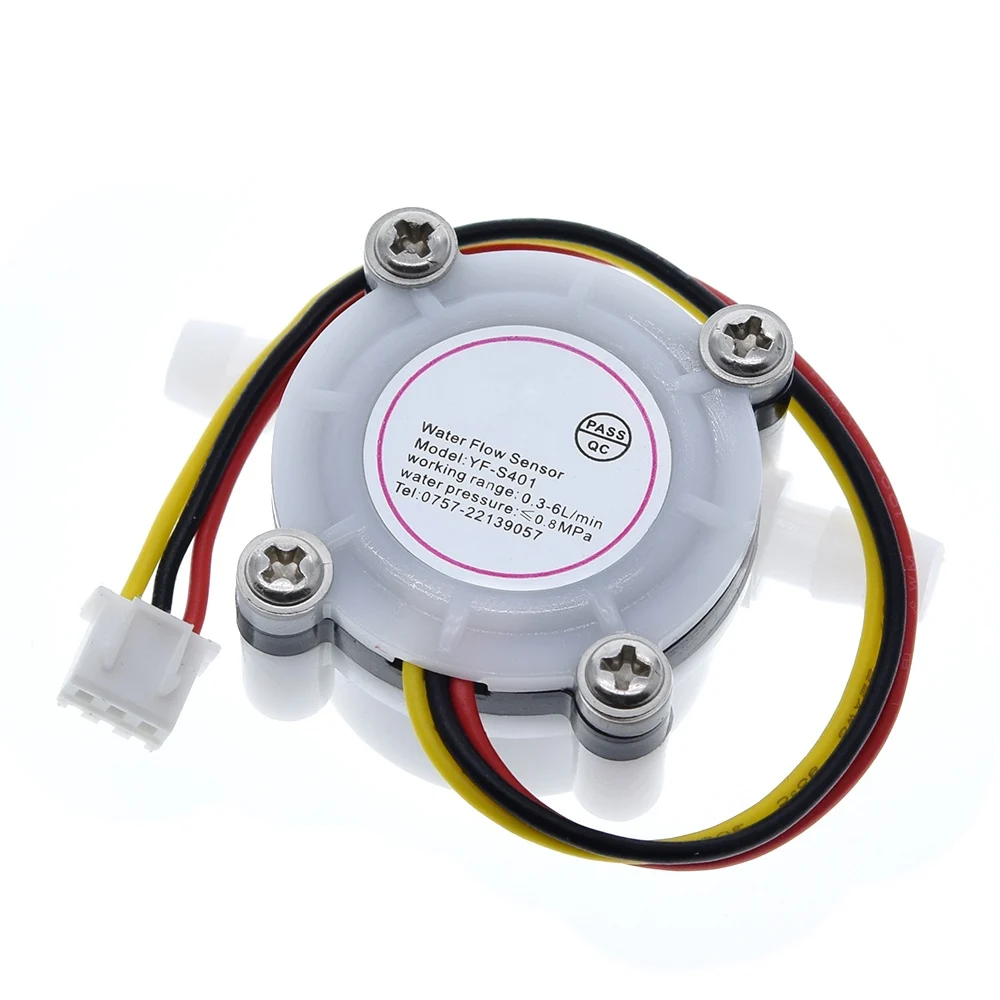

New Hot Water Coffee Flow Sensor Switch Meter Flowmeter Counter 0.3-6L/min YF-S401

• 100% brand new and high quality
• External threads: 1/4″
• Temperature: -25~+80 Celsius
• Allowing pressure: pressure 1.75Mpa
• Operating humidity range: 35%~90%RH (no frost)
  Use temperature: ≤ 80 Celsius
• Load capacity: ≤ 10 mA (DC 5V)
• Working voltage range: DC 5~18 v
• Maximum operating current: 15 mA (DC 5V)
• The lowest rated working voltage: DC4.5 5V-24V
  Quantity:1PC

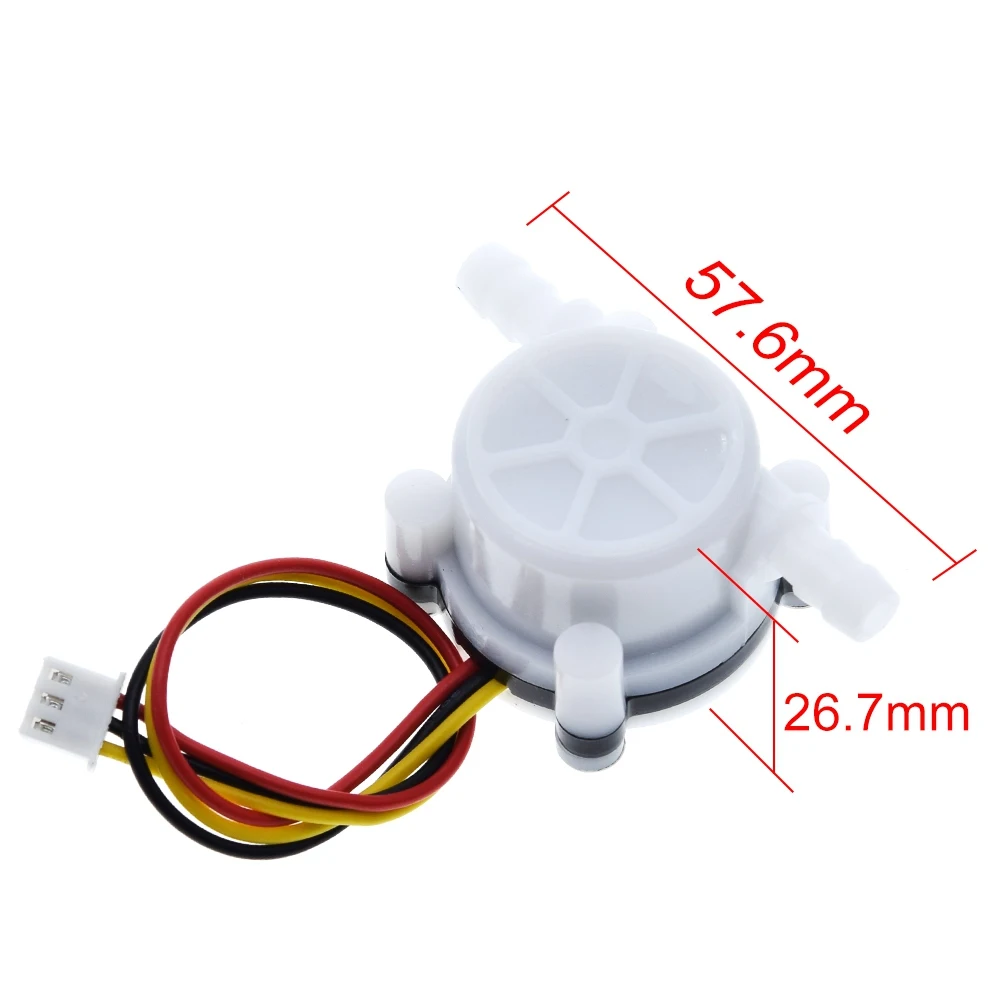

  Size : 5.7cmX4cm/2.24”X1.57”
  Color : white

Lead Way:

• Red IN connect the anode
• Yellow OUT signal output line
• Black GND connect the cathode

Package includes:

• 1pc X Coffee Maker Water Dispenser Flowmeter Flow Sensor
