JSN-SR04T / JSN-SR04T-V3.3 Ultrasonic Distance Measuring Transducer Sensor for Arduino
Product Description
The JSN-SR04T-V3.3 Ultrasonic Distance Measuring Sensor is a waterproof and highly reliable non-contact distance measurement module designed for Arduino and other microcontroller projects. It features temperature compensation, advanced co-frequency interference filtering, and a stable DC-DC design for accurate readings in harsh environments.
With a measurement range of 23 cm to 500 cm and accuracy up to ±1 cm (resolution 3 mm), this sensor is ideal for applications such as liquid level detection, sewer measurement, robotics, obstacle avoidance, and smart parking systems. The adjustable measurement angle makes it versatile for both narrow and wide detection scenarios.
Features
-
✅ Measurement Range: 23 cm – 500 cm
-
✅ Accuracy: ±1 cm, Resolution: 3 mm
-
✅ Built-in temperature compensation for accurate results
-
✅ Interference filtering technology for stable performance
-
✅ Adjustable measurement angle for different scenarios
-
✅ Output Modes: Pulse width, serial port, switch output
-
✅ Compact, waterproof, and easy to integrate into Arduino projects
Specifications
-
Model: JSN-SR04T-V3.3
-
Operating Voltage: 3.0V – 5.5V DC
-
Current Consumption: <8mA
-
Probe Frequency: 40 kHz
-
Range: 23 cm – 500 cm
-
Accuracy: ±1 cm
-
Resolution: 3 mm
-
Measuring Angle: 75° adjustable
-
Input Trigger: TTL pulse >20 µs or serial command (0x55)
-
Output Signal: Pulse width or TTL level
-

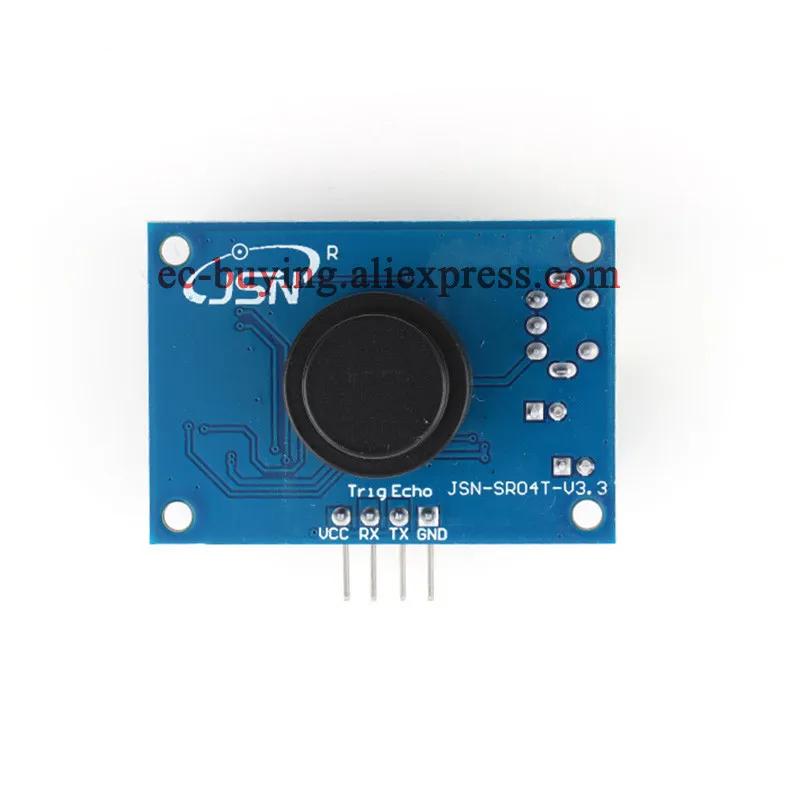

Wiring Pins: VCC, Trig, RX, Echo, TX, GND
-
Operating Temperature: -20 °C to +70 °C
Applications
-
Arduino and robotics distance measurement
-
Smart car obstacle avoidance
-
Sewer and tank depth monitoring
-
Parking and barrier detection systems
-
Liquid level measurement
Package Includes
-
1 × JSN-SR04T / JSN-SR04T-V3.3 Ultrasonic Distance Sensor Module
