AC to DC Power Conversion Module 1N4007 Full Bridge Rectifier Filter 12V 1A AC DC Converter

Description

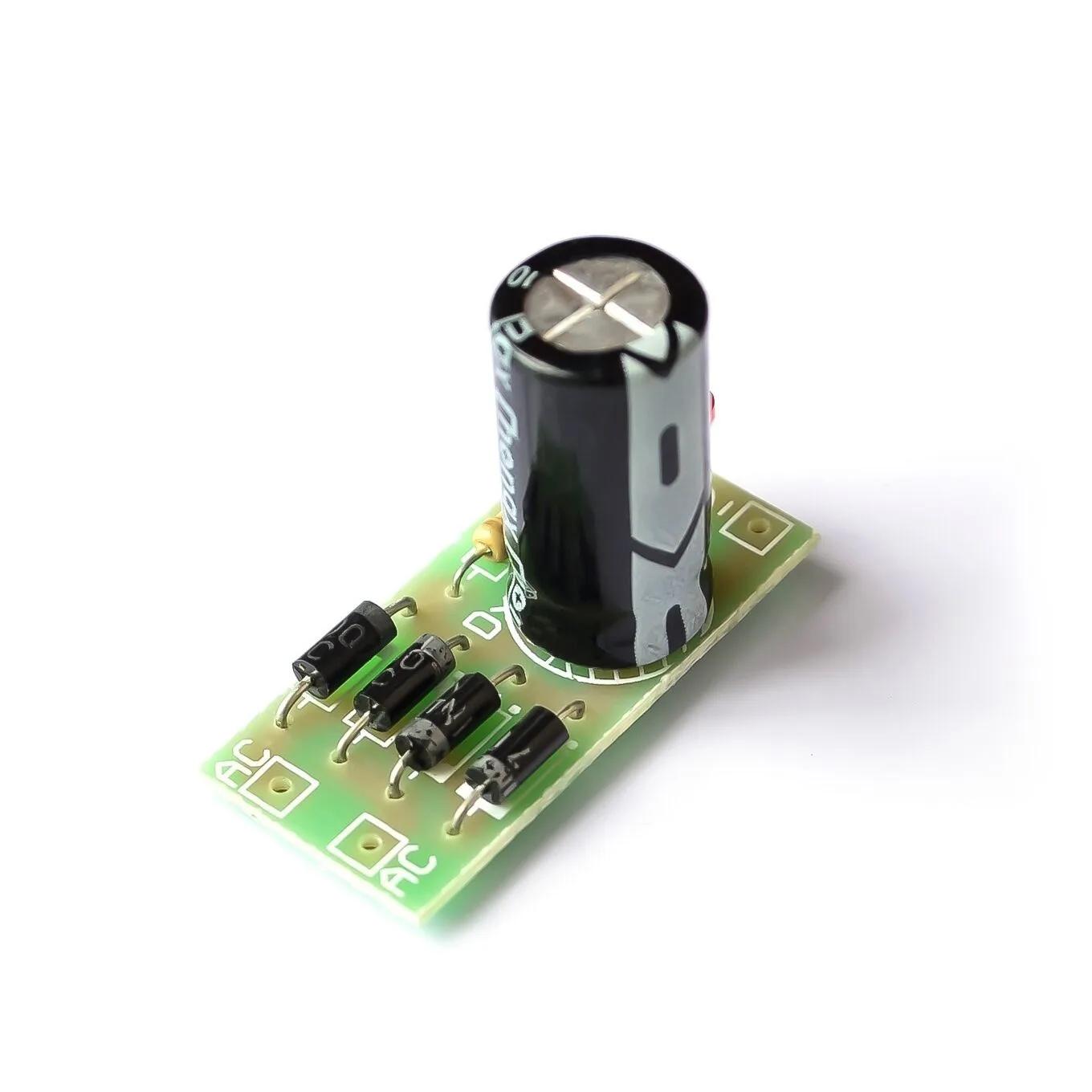

AC to DC Power Conversion Module – 1N4007 Full Bridge Rectifier with Filter

Key Features:

• Rectifier Type: 1N4007 bridge rectifier with filtering functionality.
• Input Voltage:
  • 6V to 16V AC (Capacitance: 25V1000UF)
  • 6V to 32V AC (Capacitance: 50V470UF)
• Output Voltage:
  • Rectifier output = Input × 1.414 (Example: 12V AC input → 12 × 1.414 = ~16.97V no-load output; slight deviations possible).
• Maximum Current: 1A
• Frequency Range: 50–60Hz
• PCB Size: 28mm × 13mm × 1.2mm
• Conductor Length: 9 cm

Applications:

This compact rectifier module is ideal for converting AC to DC power for small electronic devices and appliances where power requirements are moderate. It is especially suited for small transformers and electric appliances with minimal power needs.

Additional Features:

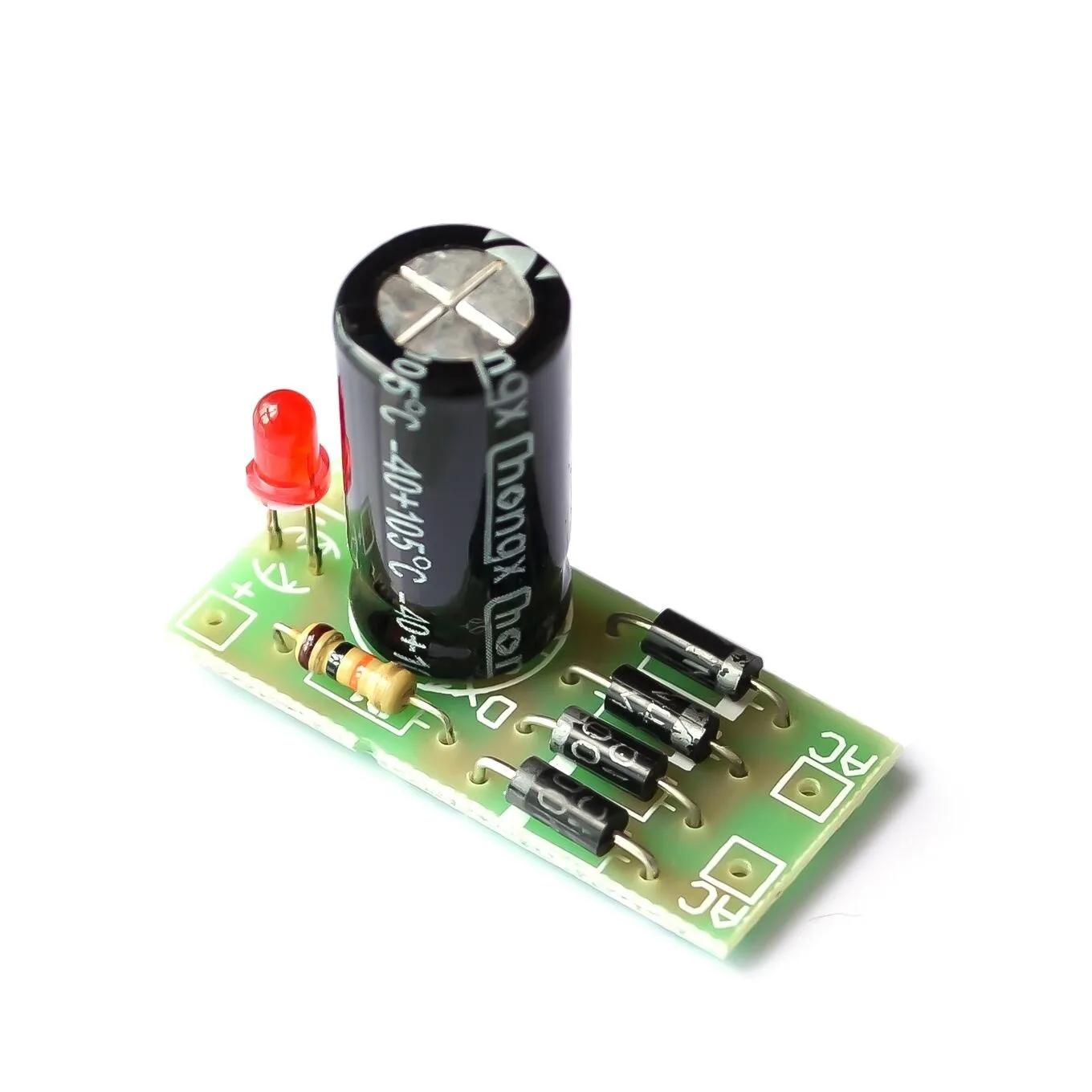

• Built-in power indicator for intuitive status monitoring.
• Space-saving design suitable for integration into small circuit boards or electric appliance boxes.

Package Includes:

1 x AC to DC Power Conversion Module (1N4007 Full Bridge Rectifier with Filter)

This module provides a streamlined and efficient solution for basic power conversion needs, making it an essential component for DIY electronics enthusiasts and small appliance repairs.
