IR Infrared Transmitter and Receiver Sensor Module 38kHz for Arduino
Product Description
The IR Infrared Transmitter and 38kHz Receiver Sensor Module is a compact and reliable module designed for Arduino, ESP32, Raspberry Pi, and other microcontroller platforms.
This kit allows you to send and receive infrared signals, making it ideal for remote control systems, obstacle detection, wireless data transmission, and DIY electronics projects.
The infrared transmitter module emits IR signals at a central wavelength of 850–940nm with a range of up to 1.3 meters at 5V, while the receiver sensor module detects signals at 38kHz, commonly used in TV remotes and IR communication devices.
Key Features
-
Infrared Transmitter & Receiver Pair – Works together for IR communication
-
38kHz Modulation – Compatible with most IR remote control protocols
-
Compact Size – Easy integration into DIY and embedded projects
-
High Accuracy – Narrow emission angle (20°) for reliable transmission
-
Digital Output – Simple connection to Arduino GPIO pins
-
Low Power Consumption – Suitable for portable devices
-
Wide Temperature Range – Reliable operation in -25°C to +85°C
Technical Specifications
Infrared Emission Module:
-
Supply Voltage: 5V
-
Working Temperature: -25°C ~ +85°C
-
Storage Temperature: -30°C ~ +100°C
-
Wavelength: 850nm – 940nm
-
Transmitting Distance: ~1.3m (at 5V, 38kHz)
-
Emission Angle: ~20°
-
Signal Type: Digital
-

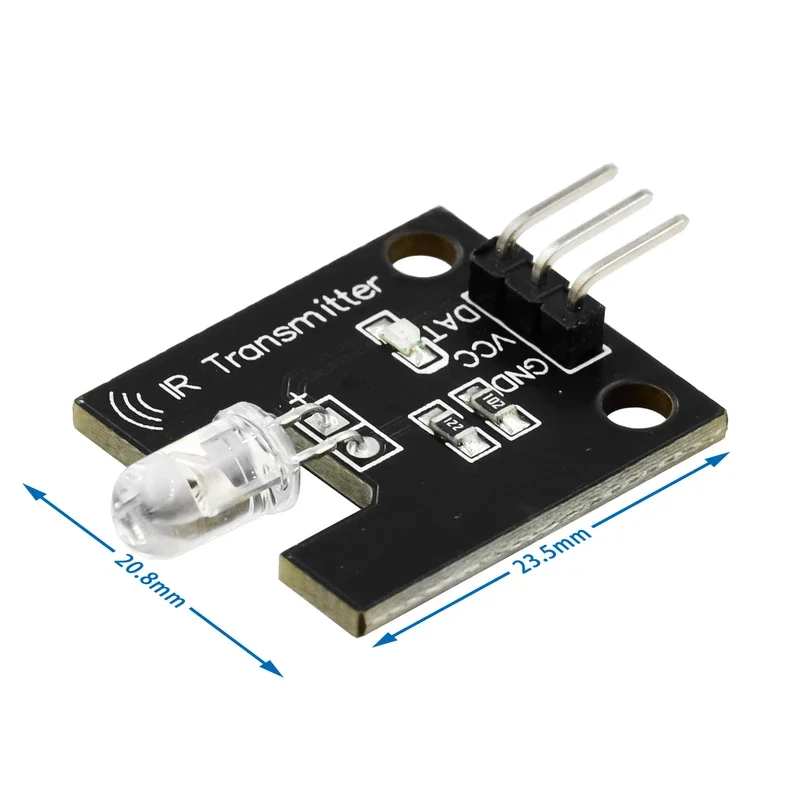

Module Size: 23.5 × 20.8mm
-
Mounting Hole Size: 3mm
-
Weight: 2g
Wiring Instructions:
-
DAT: Digital output interface
-
VCC: +5V power supply
-
GND: Ground
Applications
✔️ Remote control systems (TV, AC, set-top boxes)
✔️ IR communication between devices
✔️ DIY Arduino robotics projects
✔️ Obstacle detection systems
✔️ Smart home automation
✔️ Wireless data transmission

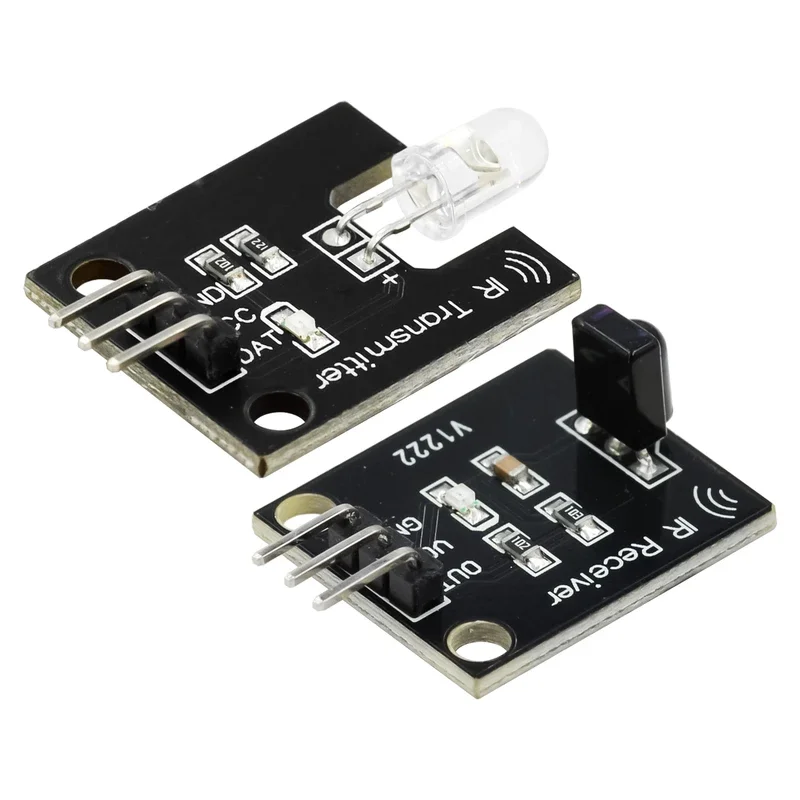

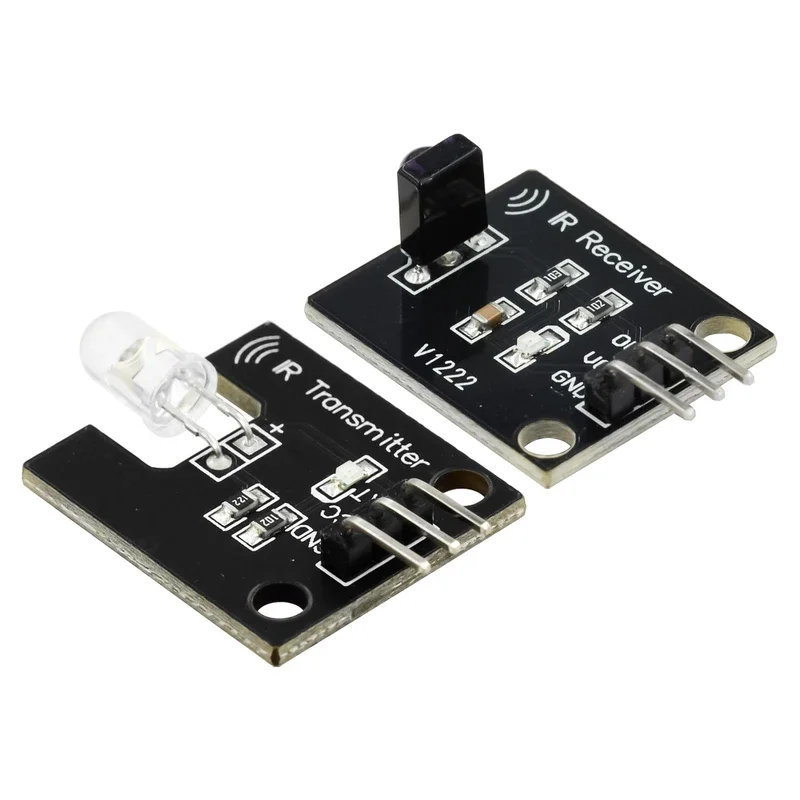

Package Includes Either
-
1 × IR Infrared Transmitter Module
-

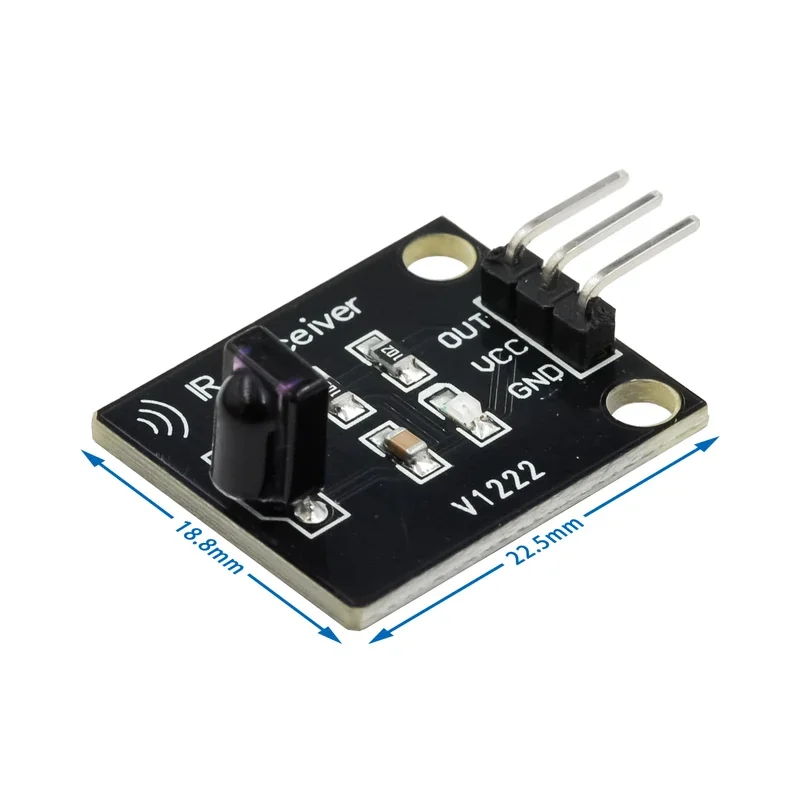

1 × 38kHz IR Receiver Sensor Module
